Stock Status: 1x unit in stock
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

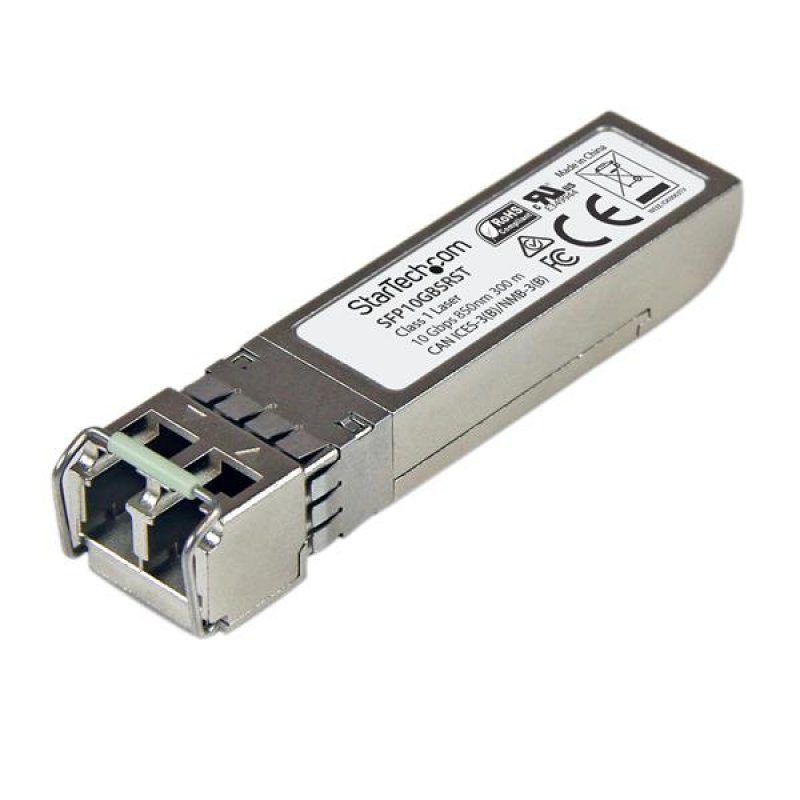

The SFP10GBSRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
Power Consumption: Less than 1.6 Watts
DDM: Yes
This SFP+ fiber module is hot-s-+wappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable 10 GbE connections for 10GBASE-SR compliant networks
- StarTech.com SFP modules are backed by a lifetime warranty
- Complies with Multi-Source Agreement (MSA) industry standards
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
20 g |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
30 mm |
| Package weight |
50 g |
| Certificates |
| Certification |
CE, FCC, UR |
| RoHS compliance |
Y |
| Power |
| Power consumption (typical) |
1.3 W |
| Networking |
| Data transfer rate (max) |
10000 Mbit/s |
| Interface type |
SFP+ |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| SFP transceiver type |
SR |
| Maximum data transfer rate |
10000 Mbit/s |
| Packaging content |
| Number of products included |
1 pc(s) |
| Performance |
| Cable type |
Fiber optic |
| Multi-mode fiber (MMF) supported |
Y |
| Wavelength |
850 nm |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Y |
| Maximum transfer distance |
300 m |
| Duplex system |
Full |
| Full duplex |
Y |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Wavelength-division multiplexing (WDM) |
N |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Fiber optic connector |
LC |
| SFP transceiver standard |
SR |
| Networking standards |
IEEE 802.3ae |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
34.5 cm |
| Master (outer) case length |
41 cm |
| Master (outer) case height |
35.5 cm |
| Quantity per master (outer) case |
100 pc(s) |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
30 mm |
| Package weight |
50 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com MSA Uncoded SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber (MMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Certification: CE, FCC, UR. Power consumption (typical): 1.3 W. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 115 mm
Product Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The SFP10GBSRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
Power Consumption: Less than 1.6 Watts
DDM: Yes
This SFP+ fiber module is hot-s-+wappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable 10 GbE connections for 10GBASE-SR compliant networks
- StarTech.com SFP modules are backed by a lifetime warranty
- Complies with Multi-Source Agreement (MSA) industry standards
