Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty

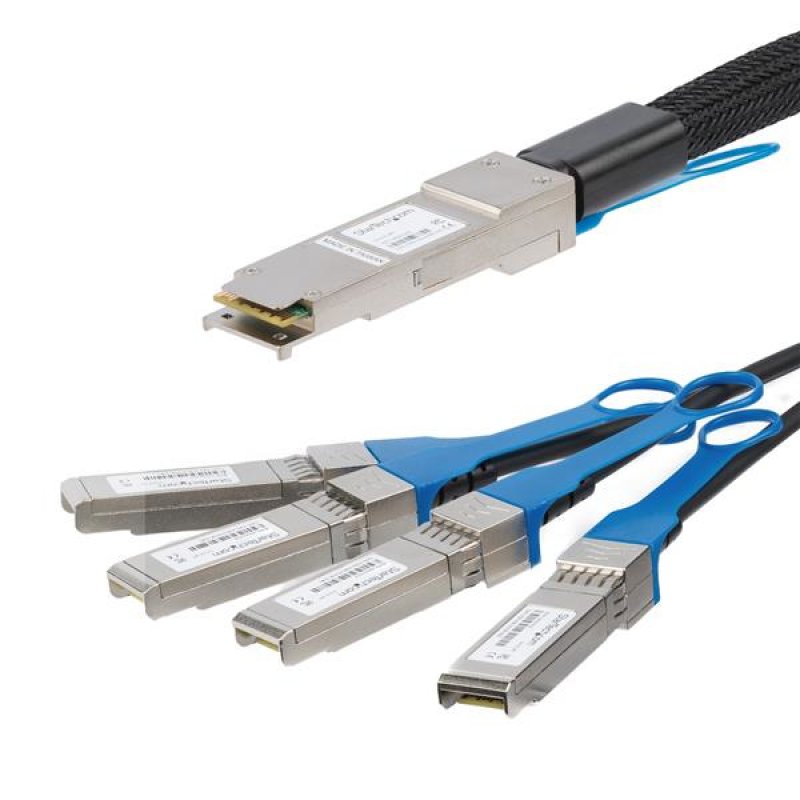

The QSFP4SFPPC1M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 1 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP Cables
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable copper 40 GbE Ethernet connections
- StarTech.com SFP cables are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic setups
Specs
| Weight & dimensions |
| Width |
14 mm |
| Depth |
1000 mm |
| Height |
12 mm |
| Weight |
238 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
207 mm |
| Package depth |
230 mm |
| Package height |
15 mm |
| Package weight |
80 g |
| Other features |
| Input impedance |
100 Ω |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 80 °C |
| Features |
| Cable length |
1 m |
| Connector 1 |
QSFP+ |
| Connector 2 |
4x SFP+ |
| Cable colour |
Black |
| Connector gender |
Male/Male |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
30 |
| Data transfer rate |
40000 Mbit/s |
| Plug and Play |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Cabling technology |
40GBase-T |
| Product colour |
Black |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Logistics data |
| Master (outer) case width |
25.5 cm |
| Master (outer) case length |
34.4 cm |
| Master (outer) case height |
29.5 cm |
| Quantity per master (outer) case |
10 pc(s) |
| Products per master (outer) case |
10 pc(s) |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com MSA Uncoded Compatible 1m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC. Cable length: 1 m, Connector 1: QSFP+, Connector 2: 4x SFP+, Data transfer rate: 40000 Mbit/s
Product Description
Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty
The QSFP4SFPPC1M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 1 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP Cables
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- Delivers reliable copper 40 GbE Ethernet connections
- StarTech.com SFP cables are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic setups
