Stock Status: 1x unit in stock
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

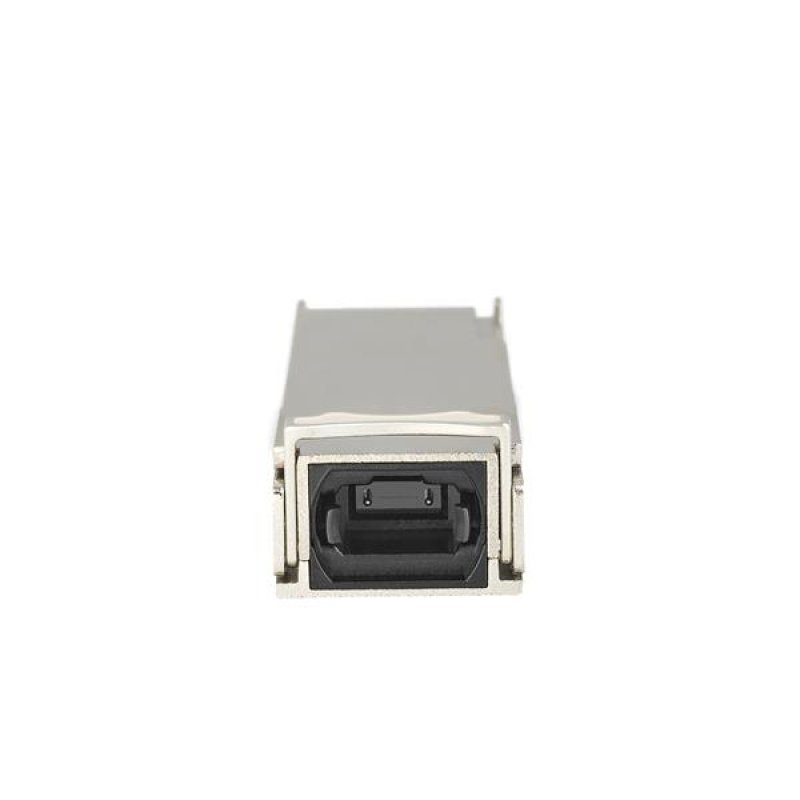

The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode Fiber
Connection Type: MPO Connector
Maximum Transfer Distance: 150 m (492 ft)
MTBF: 1,489,426 hours
Power Consumption: Less than 0.7 Watts
DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-SR4
- 40Gbps
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
18.4 mm |
| Depth |
72 mm |
| Height |
13 mm |
| Weight |
34 g |
| Power |
| Power consumption (typical) |
0.7 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
40000 Mbit/s |
| Interface type |
QSFP+ |
| Multi-mode fiber (MMF) supported |
Y |
| Fiber optic connector |
MPO |
| SFP transceiver standard |
SR4 |
| Maximum transfer distance |
150 m |
| Wavelength |
850 nm |
| Networking standards |
IEEE 802.3ba |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-Plug support |
Y |
| Mean time between failures (MTBF) |
1489426 h |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
27 cm |
| Master (outer) case length |
34 cm |
| Master (outer) case height |
33 cm |
| Quantity per master (outer) case |
60 pc(s) |
| Products per master (outer) case |
60 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
90 mm |
| Package depth |
120 mm |
| Package height |
30 mm |
| Package weight |
62 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1489426 h. Power consumption (typical): 0.7 W. Width: 18.4 mm, Depth: 72 mm, Height: 13 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 120 mm
Product Description
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode Fiber
Connection Type: MPO Connector
Maximum Transfer Distance: 150 m (492 ft)
MTBF: 1,489,426 hours
Power Consumption: Less than 0.7 Watts
DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-SR4
- 40Gbps
