Stock Status: 1x unit in stock

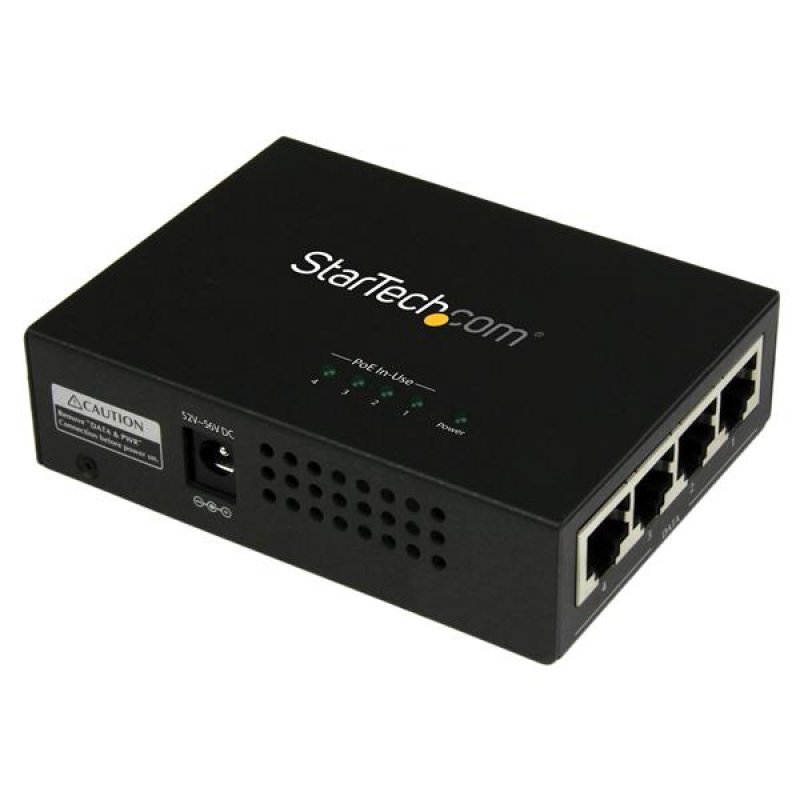

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.
More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.
The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Weight & dimensions |
| Width |
70 mm |
| Depth |
94 mm |
| Height |
26 mm |
| Weight |
204 g |
| Packaging data |
| Package width |
180 mm |
| Package depth |
305 mm |
| Package height |
90 mm |
| Package weight |
1.63 kg |
| Networking |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
8 |
| Power over Ethernet (PoE) ports quantity |
4 |
| DC-in jack |
Y |
| Power |
| AC input voltage |
100-240 V |
| Power consumption (max) |
120 W |
| Output voltage |
52 V |
| Output current |
2.31 A |
| Plug type |
Type M |
| Power plug type |
Type M |
| Power over Ethernet (PoE) |
Y |
| Packaging content |
| Cables included |
AC |
| Manual |
Y |
| AC adapter included |
Y |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
PoE, Power |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Performance |
| Type |
Network transmitter |
| Maximum transfer distance |
100 m |
| Power over Ethernet (PoE) |
Y |
| Data transfer rate |
2000 Mbit/s |
| Full duplex |
Y |
| Auto MDIX IEEE |
Y |
| Auto-negotiation |
Y |
| Duplex system |
Full |
| Plug and Play |
Y |
| Mean time between failures (MTBF) |
50000 h |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 2000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u. Product colour: Black, Housing material: Steel, LED indicators: PoE, Power. AC input voltage: 100-240 V, Power consumption (max): 120 W, Output voltage: 52 V. Width: 70 mm, Depth: 94 mm, Height: 26 mm
Product Description
This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.
More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.
The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
