Stock Status: 1x unit in stock

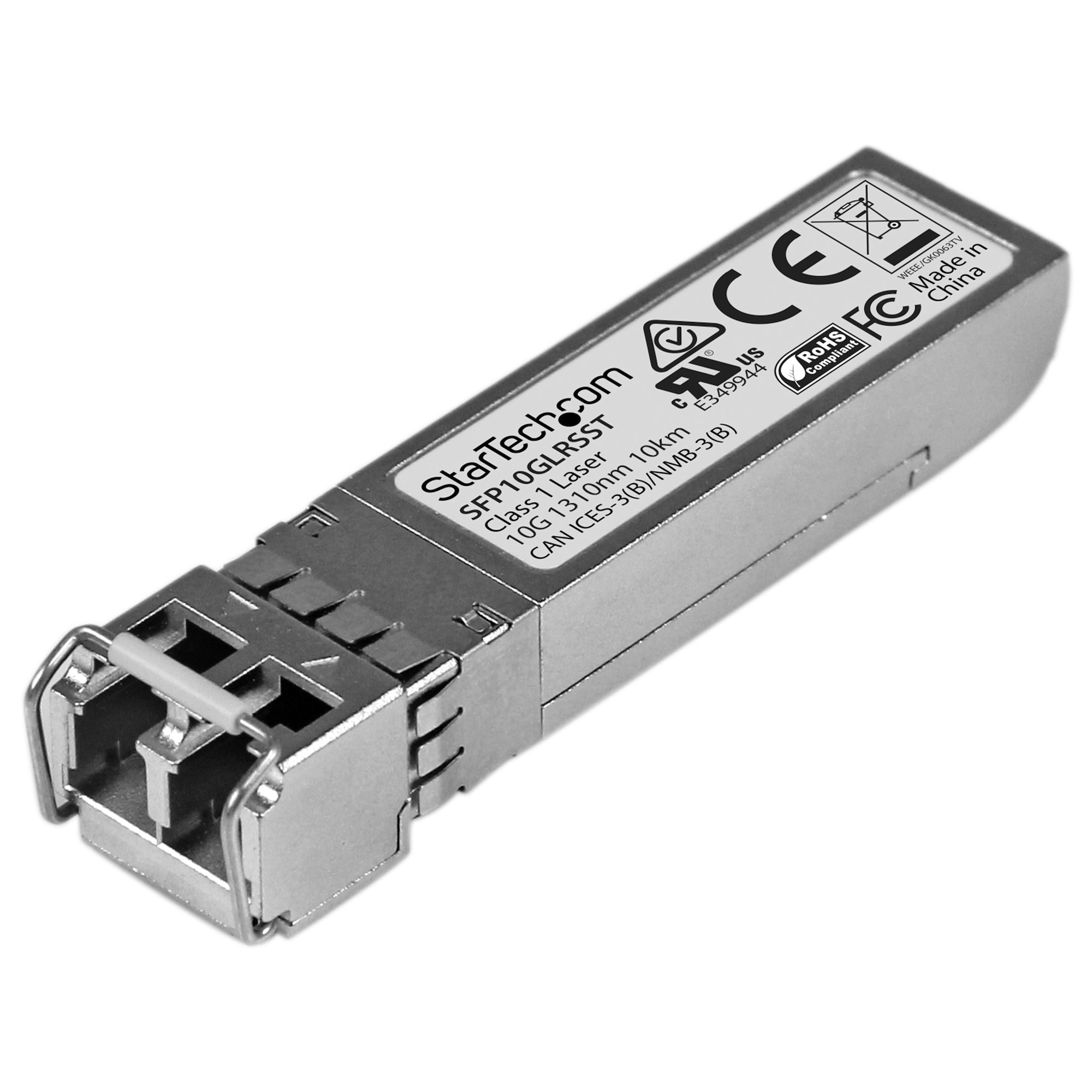

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP10GLRSST is a Cisco SFP-10G-LR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 10 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 2,104,865 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
20 g |
| Power |
| Power consumption (typical) |
1.3 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Single-mode fiber (SMF) supported |
Yes |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LR |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Networking standards |
IEEE 802.3ae |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
2104865 h |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
253 mm |
| Master (outer) case length |
305 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
201 mm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
118 mm |
| Package depth |
93 mm |
| Package height |
33 mm |
| Package weight |
48 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco SFP-10G-LR-S Compatible SFP+ Transceiver Module - 10GBASE-LR~Cisco SFP-10G-LR-S Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM Cisco Firepower, ASR9000, C9300. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 2104865 h. Power consumption (typical): 1.3 W. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 118 mm, Package depth: 93 mm
Product Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP10GLRSST is a Cisco SFP-10G-LR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1310nm• Maximum Data Transfer Rate: 10 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 2,104,865 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): YesThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
