Stock Status: 1x unit in stock
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber

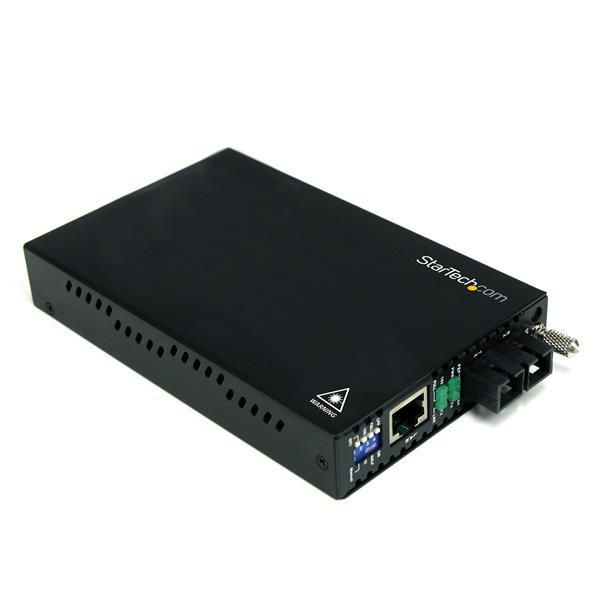

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specs
| Networking |
| Maximum data transfer rate |
200 Mbit/s |
| Converter input interface |
10Base-T |
| Converter output interface |
100Base-FX |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| Duplex system |
Full, Half |
| Weight & dimensions |
| Weight |
600 g |
| Ports & interfaces |
| Fiber optic connector |
SC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
| Output voltage |
12 V |
| Output current |
1 A |
| External power adapter |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Other features |
| Dimensions (WxDxH) |
95 x 160 x 20 mm |
| Full duplex |
Yes |
| Packaging content |
| Manual |
Yes |
| Design |
| Internal |
No |
| Product colour |
Black |
| Certification |
CE, FCC |
| Performance |
| Maximum transfer distance |
30000 m |
| Wavelength |
1310 nm |
| Fiber mode structure |
Single-mode |
| Management features |
| Plug and Play |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
206 mm |
| Package depth |
137 mm |
| Package height |
89 mm |
| Package weight |
766 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Compliance certificates |
RoHS |
Features
StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km. Maximum data transfer rate: 200 Mbit/s, Converter input interface: 10Base-T, Converter output interface: 100Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 30000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Black, Certification: CE, FCC. Output voltage: 12 V, Output current: 1 A
Product Description
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
