Stock Status: 1x unit in stock
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

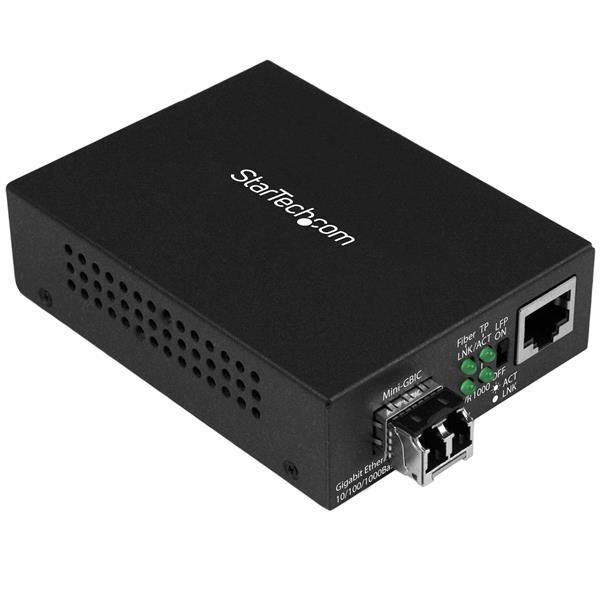

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Converter input interface |
1000Base-T, 100Base-TX, 10Base-T |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Data transfer rate |
1000 Mbit/s |
| Jumbo frames support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Duplex system |
Full |
| Weight & dimensions |
| Width |
70 mm |
| Depth |
94 mm |
| Height |
26 mm |
| Weight |
201 g |
| Ports & interfaces |
| Fiber optic connector |
LC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| DC-in jack |
Yes |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power over Ethernet (PoE) |
No |
| External power adapter |
Yes |
| Power plug type |
Type N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
| Manual |
Yes |
| Performance |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Wavelength-division multiplexing (WDM) |
No |
| Fiber mode structure |
Multi-mode |
| Mean time between failures (MTBF) |
50000 h |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
140 mm |
| Package depth |
284 mm |
| Package height |
68 mm |
| Package weight |
556 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC, REACH, TAA |
| Features |
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Housing material |
Steel |
Features
StarTech.com Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-T, 100Base-TX, 10Base-T, Converter output interface: 1000Base-LX, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Steel. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V
Product Description
Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft
This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
