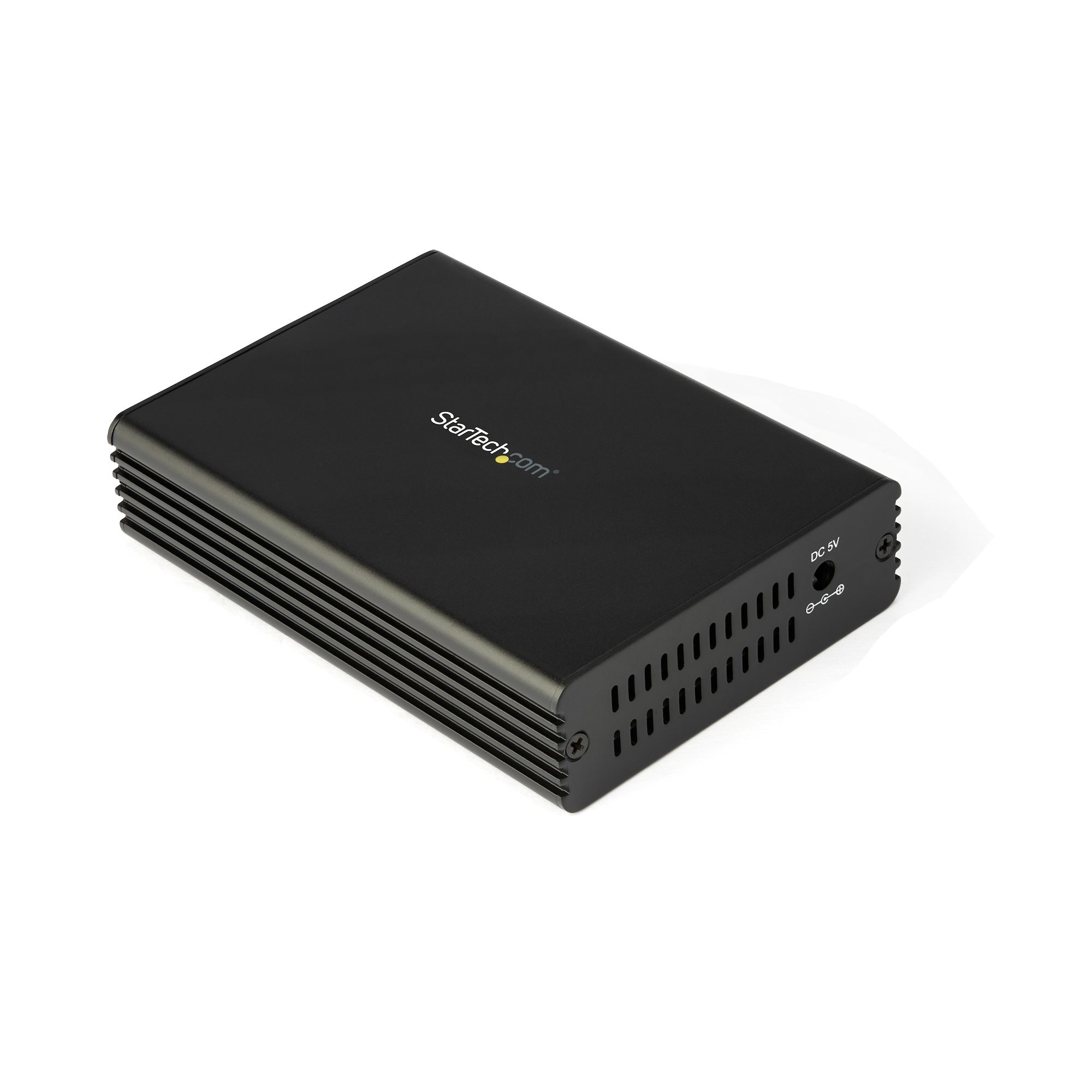

"Fiber to Copper Media Converter | 10GBASE-T | 10Gbps Unmanaged | Single Mode & Multimode
This Ethernet fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP+ of your choice. It converts a copper RJ45 Ethernet connection to 10 Gigabit fiber, to extend your network over longer distances or connect workstations to switches.
Cost-Effective Extensions and Flexible Performance
The RJ45 to fiber media converter provides a cost-efficient way to connect an Ethernet network to remote devices over a fiber backbone. It features an open SFP+ slot that supports the MSA-compliant 10 Gigabit SFP+ that best suits your fiber connection setup (single mode/multimode) and distance requirements.
A Versatile Way to Connect Different Networks
The 10Gb fiber media converter supports auto-negotiation while providing versatile connectivity to existing networks and devices, maximizing the usage and performance of legacy equipment.
Network Compatibility:
10GBASE-ER
10GBASE-LR
10GBASE-LW
10GBASE-EW
10GBASE-R
10GBASE-SR
10GBASE-SW
10GBASE-T
Fast and Easy Installation
The unmanaged fiber media converter has a standalone compact design with simple plug-and-play setup to ensure fast and easy installation.
StarTech.com Fiber Media Converters
Overcome the distance limitations of traditional network cables with StarTech.com fiber media converters. Our converters connect different types of network cabling and help you extend networks between buildings and over longer distances. Whether you need to extend a network connection 550 m or 40 km, we can help you. The MCM10GSFP Ethernet Fiber Media Converter is backed by a StarTech.com 2-year warranty and free North American based multilingual lifetime technical support.
The StarTech.com Advantage
- Convert between an RJ45 copper Ethernet connection and a fiber-optic connection to extend your network cost-effectively
- Customize the network extension distance to your requirements with virtually any MSA-compliant multimode or single-mode transceiver using the open 10Gb SFP+ slot
- 10Gbps (10GBASE-T) compatible RJ45 port supports auto-negotiation"
Specs
| Networking |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.1Q,IEEE 802.3ae,IEEE 802.3an |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,1200,2500,5000,10000 Mbit/s |
| Fiber ethernet cabling technology |
10GBASE-LR,10GBASE-SR |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Weight & dimensions |
| Width |
80 mm |
| Depth |
122 mm |
| Height |
30 mm |
| Weight |
274 g |
| Ports & interfaces |
| Fiber optic connector |
SFP+ |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Power |
| Input current |
250 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power over Ethernet (PoE) |
N |
| External power adapter |
Y |
| Power plug type |
Type M |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 120 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging content |
| AC adapter included |
Y |
| Manual |
Y |
| Design |
| Internal |
N |
| LED indicators |
Link, Power |
| Product colour |
Black |
| Housing material |
Aluminium |
| Certification |
CE, FCC, UL, PSE |
| Performance |
| Fiber mode structure |
Multi-mode, Single-mode |
| Packaging data |
| Package width |
144 mm |
| Package depth |
207 mm |
| Package height |
38 mm |
| Package weight |
350 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 10Gb Ethernet Fiber Media Converter with Open SFP+ Slot. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.1Q,IEEE 802.3ae,IEEE 802.3an, Ethernet interface type: 10 Gigabit Ethernet. Fiber optic connector: SFP+, Connectivity technology: Wired. Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Power, Product colour: Black, Housing material: Aluminium. Input current: 250 A, Output voltage: 5 V, Output current: 2 A
