Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

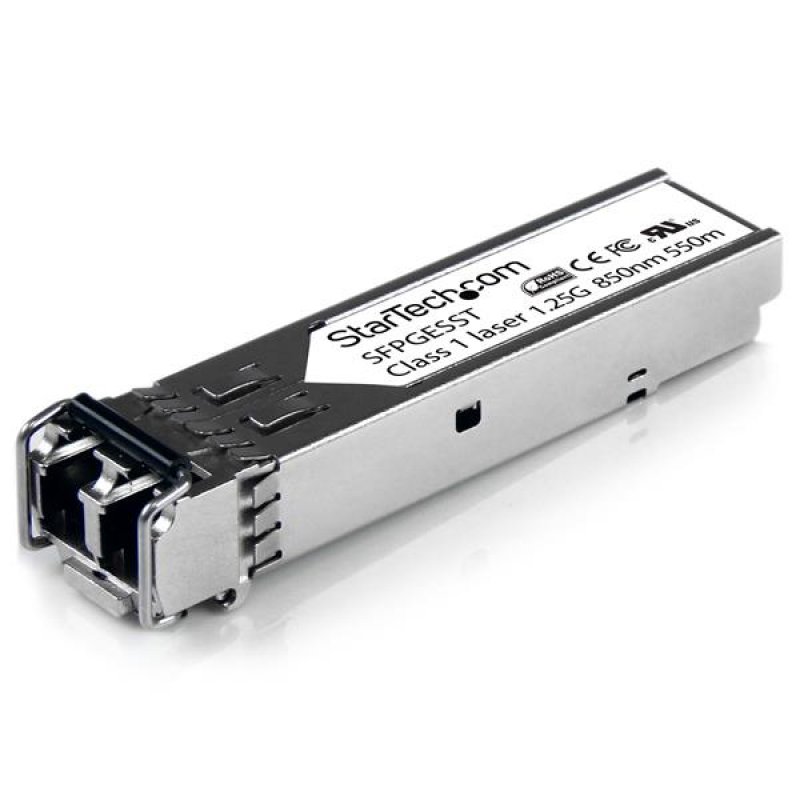

The SFPGESST is a Cisco SFP-GE-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550 m (1804 ft)
MTBF: 3,381,761 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco SFP-GE-S guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Weight & dimensions |
| Width |
12 mm |
| Depth |
60 mm |
| Height |
10 mm |
| Weight |
17 g |
| Package width |
119 mm |
| Package depth |
92 mm |
| Package height |
32 mm |
| Package weight |
95 g |
| Certificates |
| Certification |
CE, FCC, UL |
| RoHS compliance |
Y |
| Power |
| Power consumption (typical) |
1 W |
| Networking |
| Data transfer rate (max) |
1250 Mbit/s |
| Interface type |
SFP |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| SFP transceiver type |
SX |
| Maximum data transfer rate |
1250 Mbit/s |
| Packaging content |
| Number of products included |
1 pc(s) |
| Performance |
| Cable type |
Fiber optic |
| Multi-mode fiber (MMF) supported |
Y |
| Wavelength |
850 nm |
| Product colour |
Silver |
| Hot-swap |
Y |
| Maximum transfer distance |
550 m |
| Mean time between failures (MTBF) |
3381761 h |
| Duplex system |
Full, Half |
| Full duplex |
Y |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Wavelength-division multiplexing (WDM) |
N |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| SFP transceiver standard |
SX |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Features |
| Product colour |
Silver |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
3381761 h |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UL, REACH |
| Brand compatibility |
Cisco |
| Compatible products |
SFP-GE-S |
| Logistics data |
| Master (outer) case width |
26.3 cm |
| Master (outer) case length |
30.7 cm |
| Master (outer) case height |
20.1 cm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
119 mm |
| Package depth |
92 mm |
| Package height |
32 mm |
| Package weight |
95 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco SFP-GE-S Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco IE3400, IE3300, IE3200. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 3381761 h, Brand compatibility: Cisco. Power consumption (typical): 1 W. Width: 12 mm, Depth: 60 mm, Height: 10 mm. Number of products included: 1 pc(s), Package width: 119 mm, Package depth: 92 mm
Product Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SFPGESST is a Cisco SFP-GE-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550 m (1804 ft)
MTBF: 3,381,761 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco SFP-GE-S guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
