Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | TAA | Lifetime Warranty

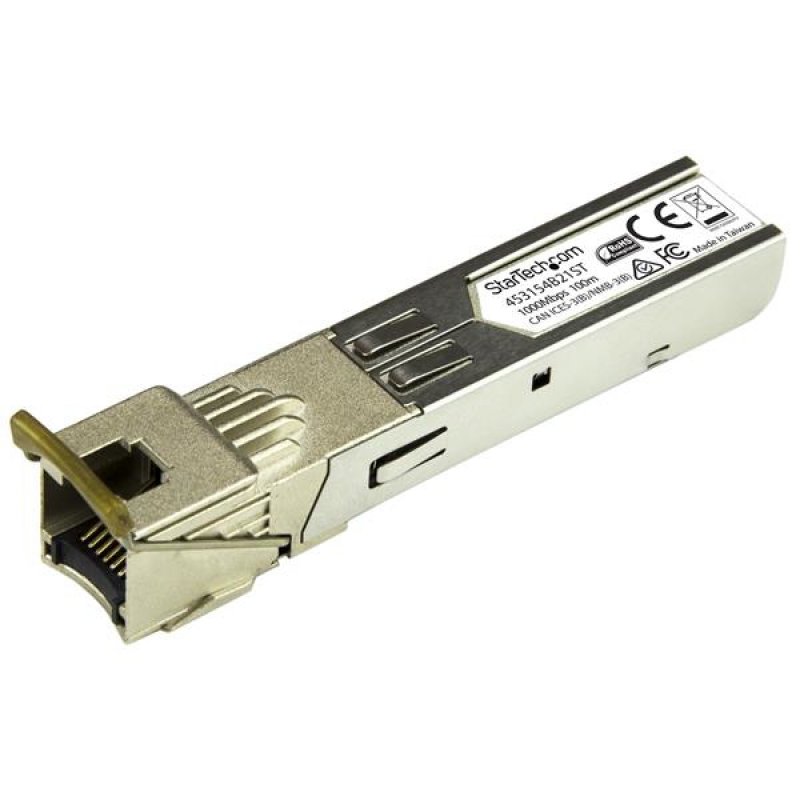

The 453154B21ST is a TAA compliant HP 453154-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1000 Mbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 805,386 hours
Power Consumption: Less than 1.3 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with HP 453154-B21 guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
15.1 mm |
| Depth |
74.8 mm |
| Height |
15.7 mm |
| Weight |
24 g |
| Power |
| Power consumption (typical) |
1.3 W |
| Performance |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Maximum transfer distance |
100 m |
| Networking standards |
IEEE 802.1ab |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Digital Diagnostics Monitoring (DDM) |
N |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
805386 h |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UL, TAA, UR |
| Logistics data |
| Master (outer) case width |
34.1 cm |
| Master (outer) case length |
63.7 cm |
| Master (outer) case height |
28.9 cm |
| Quantity per master (outer) case |
150 pc(s) |
| Products per master (outer) case |
150 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
75 mm |
| Package depth |
122 mm |
| Package height |
33 mm |
| Package weight |
56 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com HPE 453154-B21 Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 6120XG, 6120G, Flex Fabric. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 805386 h. Power consumption (typical): 1.3 W. Width: 15.1 mm, Depth: 74.8 mm, Height: 15.7 mm. Number of products included: 1 pc(s), Package width: 75 mm, Package depth: 122 mm
Product Description
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | TAA | Lifetime Warranty
The 453154B21ST is a TAA compliant HP 453154-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1000 Mbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 805,386 hours
Power Consumption: Less than 1.3 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with HP 453154-B21 guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
