Stock Status: 1x unit in stock

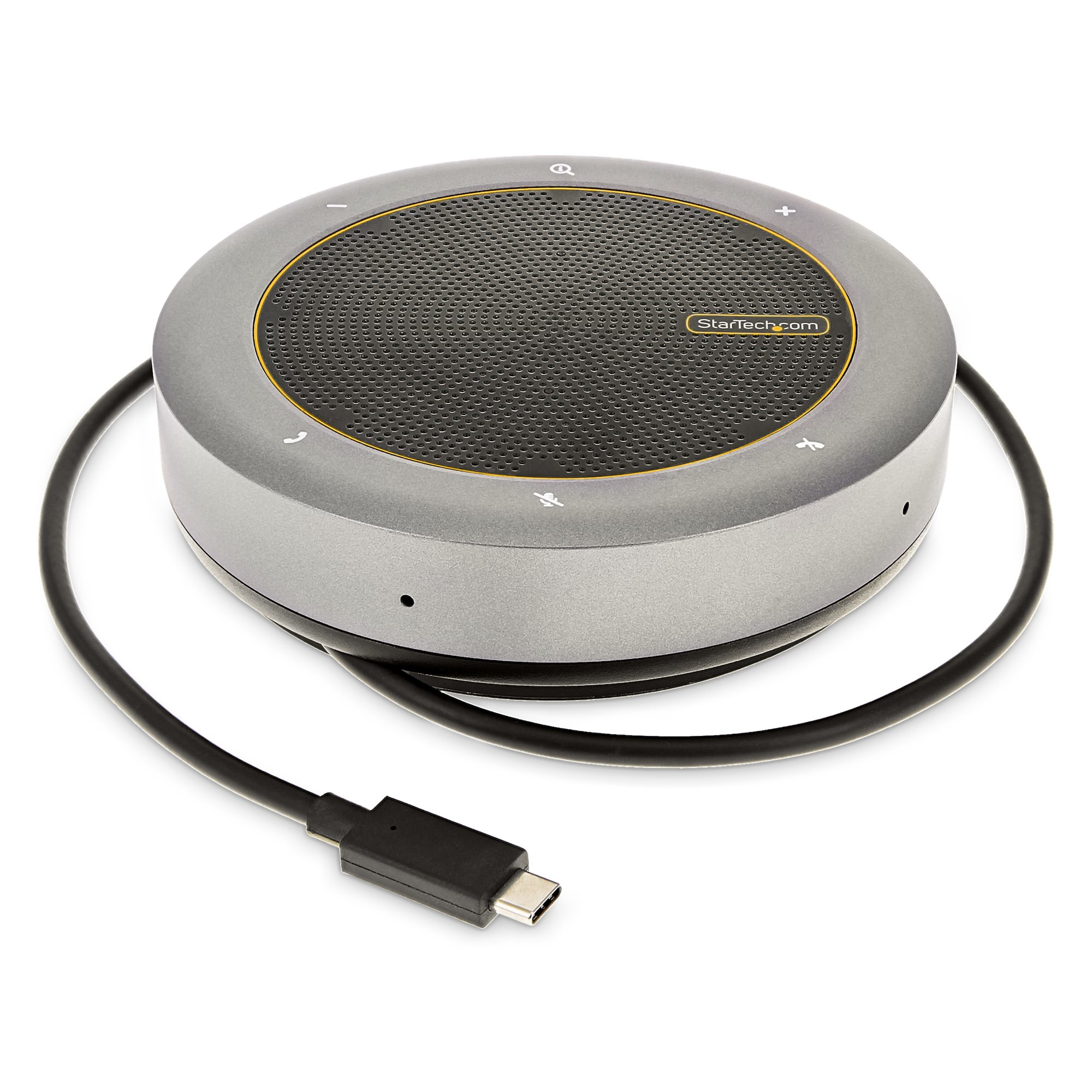

Dual Omni-Directional Microphones | USB Type-C to HDMI or VGA (DP Alt Mode) | Built-in 22in (56cm) Wraparound CableThis USB Type-C Conference Speaker Mini Dock features a speakerphone, HDMI/VGA video output, USB-C PD pass-through/data, a USB-A x2 hub, a built-in USB-C host cable, and tap/touch buttons with LED indicators. It simplifies a workstation setup, converting any desk into a teleconferencing space. The dock features HDMI or VGA single-video output. It has 2 USB-A ports and a USB-C port with the option for Power Delivery (PD) pass-though.. The Conference Speaker Dock connects to the host device, using a built-in wraparound 22 in. (56 cm) USB-C host cable. Connect this host cable to a USB-C or Thunderbolt 3/4™ port.Unified Collaboration Platform CompatibilityThe Speakerphone Dock is optimized for use with Unified Communications (UC) platforms, such as Microsoft Teams, Zoom, Google Meet, etc. The dock features buttons that intuitively control functions within the UC platform:• Call Button - Tap to receive and accept an incoming call.• Hang up Button - Tap to disconnect from the current call or to reject an incoming call.• +/- Volume Buttons - Tap to adjust the system volume.• Mute Button - Tap to disable the built-in microphone.The dock is optimized for Microsoft Teams and fully compatible with other UC/softphone applications including Zoom, Skype, and Google Meet.Conference Speaker and Omnidirectional MicrophonesCapture voices from up to 7.5ft (2.3m) away, using the dual-omnidirectional microphones (100Hz to 10kHz) with echo cancellation and noise reduction. The microphones are ideal for capturing audio in mid-size meeting rooms (6-8 people) or from any location in a home office room. The speakers deliver 89dB (100Hz - 20kHz) distortion-free high-definition audio.Easy DeploymentThe speaker dock features docking station connectivity options in a quick-to-deploy format. Connect an HDMI or VGA enabled display device for single-video output. The HDMI video output supports resolutions up to 4K 60Hz. The VGA video output supports resolutions up to 1080p 60Hz.Power and charge the connected laptop by connecting the host computer's USB-C power adapter to the USB-C PD 3.0 pass-though port. Alternatively, power the speaker dock with bus power. In this configuration, the USB-C PD port can be used to connect a USB 3.2 Gen 1 (5Gbps) peripheral.The dock also features a built-in 22 in. (56 cm) cable to provide extended reach that reduces port/connector strain on 2-in-1 devices like the Surface Pro 7/8, or when used with laptops on a riser stand. The docking station supports Windows, macOS, and Chrome OS. Connect to Thunderbolt 3/4 and USB Type-C laptops from HP, Lenovo, Dell, and Apple.Compact and PortableIntegrated wrap-around cable management enables the cable to be tucked away to prevent tangling during transit. The small desktop foot print is ideal for hybrid travel use between the office, and work-from-home virtual meetings.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : Setup and save custom windows layouts.•USB Event Monitoring Utility : Track and log connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
130 mm |
| Depth |
130 mm |
| Height |
36 mm |
| Weight |
600 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Microphone |
| Microphone frequency |
100 - 10000 Hz |
| Number of microphones |
2 |
| Microphone direction type |
Omnidirectional |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Packaging data |
| Package width |
200 mm |
| Package depth |
200 mm |
| Package height |
45 mm |
| Package weight |
500 g |
| Packaging content |
| Quick start guide |
Yes |
| Features |
| Product colour |
Grey |
| Card reader integrated |
No |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Logistics data |
| Master (outer) case width |
410 mm |
| Master (outer) case length |
440 mm |
| Master (outer) case height |
145 mm |
| Products per master (outer) case |
12 pc(s) |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, RoHS |
Features
StarTech.com USB-C Speakerphone Docking Station, Mini Portable Conference Speaker and Audio Dock, USB-C to VGA/4K HDMI, 2x USB-A Hub, Mic/Speaker, Teams/Zoom/Softphone Speakerphone. Product colour: Grey, Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura. Microphone frequency: 100 - 10000 Hz, Microphone direction type: Omnidirectional. Connectivity technology: Wired. Sustainability certificates: CE, RoHS. Width: 130 mm, Depth: 130 mm, Height: 36 mm
Product Description
Dual Omni-Directional Microphones | USB Type-C to HDMI or VGA (DP Alt Mode) | Built-in 22in (56cm) Wraparound CableThis USB Type-C Conference Speaker Mini Dock features a speakerphone, HDMI/VGA video output, USB-C PD pass-through/data, a USB-A x2 hub, a built-in USB-C host cable, and tap/touch buttons with LED indicators. It simplifies a workstation setup, converting any desk into a teleconferencing space. The dock features HDMI or VGA single-video output. It has 2 USB-A ports and a USB-C port with the option for Power Delivery (PD) pass-though.. The Conference Speaker Dock connects to the host device, using a built-in wraparound 22 in. (56 cm) USB-C host cable. Connect this host cable to a USB-C or Thunderbolt 3/4™ port.Unified Collaboration Platform CompatibilityThe Speakerphone Dock is optimized for use with Unified Communications (UC) platforms, such as Microsoft Teams, Zoom, Google Meet, etc. The dock features buttons that intuitively control functions within the UC platform:• Call Button - Tap to receive and accept an incoming call.• Hang up Button - Tap to disconnect from the current call or to reject an incoming call.• +/- Volume Buttons - Tap to adjust the system volume.• Mute Button - Tap to disable the built-in microphone.The dock is optimized for Microsoft Teams and fully compatible with other UC/softphone applications including Zoom, Skype, and Google Meet.Conference Speaker and Omnidirectional MicrophonesCapture voices from up to 7.5ft (2.3m) away, using the dual-omnidirectional microphones (100Hz to 10kHz) with echo cancellation and noise reduction. The microphones are ideal for capturing audio in mid-size meeting rooms (6-8 people) or from any location in a home office room. The speakers deliver 89dB (100Hz - 20kHz) distortion-free high-definition audio.Easy DeploymentThe speaker dock features docking station connectivity options in a quick-to-deploy format. Connect an HDMI or VGA enabled display device for single-video output. The HDMI video output supports resolutions up to 4K 60Hz. The VGA video output supports resolutions up to 1080p 60Hz.Power and charge the connected laptop by connecting the host computer's USB-C power adapter to the USB-C PD 3.0 pass-though port. Alternatively, power the speaker dock with bus power. In this configuration, the USB-C PD port can be used to connect a USB 3.2 Gen 1 (5Gbps) peripheral.The dock also features a built-in 22 in. (56 cm) cable to provide extended reach that reduces port/connector strain on 2-in-1 devices like the Surface Pro 7/8, or when used with laptops on a riser stand. The docking station supports Windows, macOS, and Chrome OS. Connect to Thunderbolt 3/4 and USB Type-C laptops from HP, Lenovo, Dell, and Apple.Compact and PortableIntegrated wrap-around cable management enables the cable to be tucked away to prevent tangling during transit. The small desktop foot print is ideal for hybrid travel use between the office, and work-from-home virtual meetings.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : Setup and save custom windows layouts.•USB Event Monitoring Utility : Track and log connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
