Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

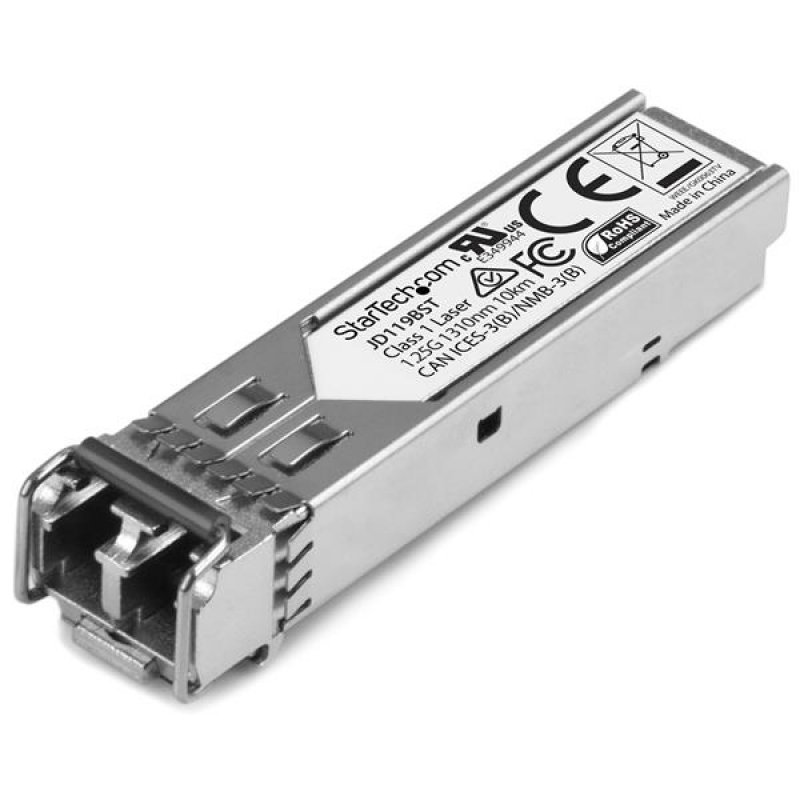

The JD119BST is an HP JD119B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE JD119B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- TECHNICAL SPECS: 1000BASE-LX
- 1Gbps
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.7 mm |
| Depth |
56.6 mm |
| Height |
12.5 mm |
| Weight |
16 g |
| Power |
| Power consumption (typical) |
1 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Y |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LX |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Networking standards |
IEEE 802.3z |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
3092408 h |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
25.4 cm |
| Master (outer) case length |
30.5 cm |
| Master (outer) case height |
20.1 cm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
118 mm |
| Package depth |
93 mm |
| Package height |
33 mm |
| Package weight |
46 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com HPE JD119B Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 3092408 h. Power consumption (typical): 1 W. Width: 13.7 mm, Depth: 56.6 mm, Height: 12.5 mm. Number of products included: 1 pc(s), Package width: 118 mm, Package depth: 93 mm
Product Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The JD119BST is an HP JD119B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE JD119B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- TECHNICAL SPECS: 1000BASE-LX
- 1Gbps
