Stock Status: 1x unit in stock

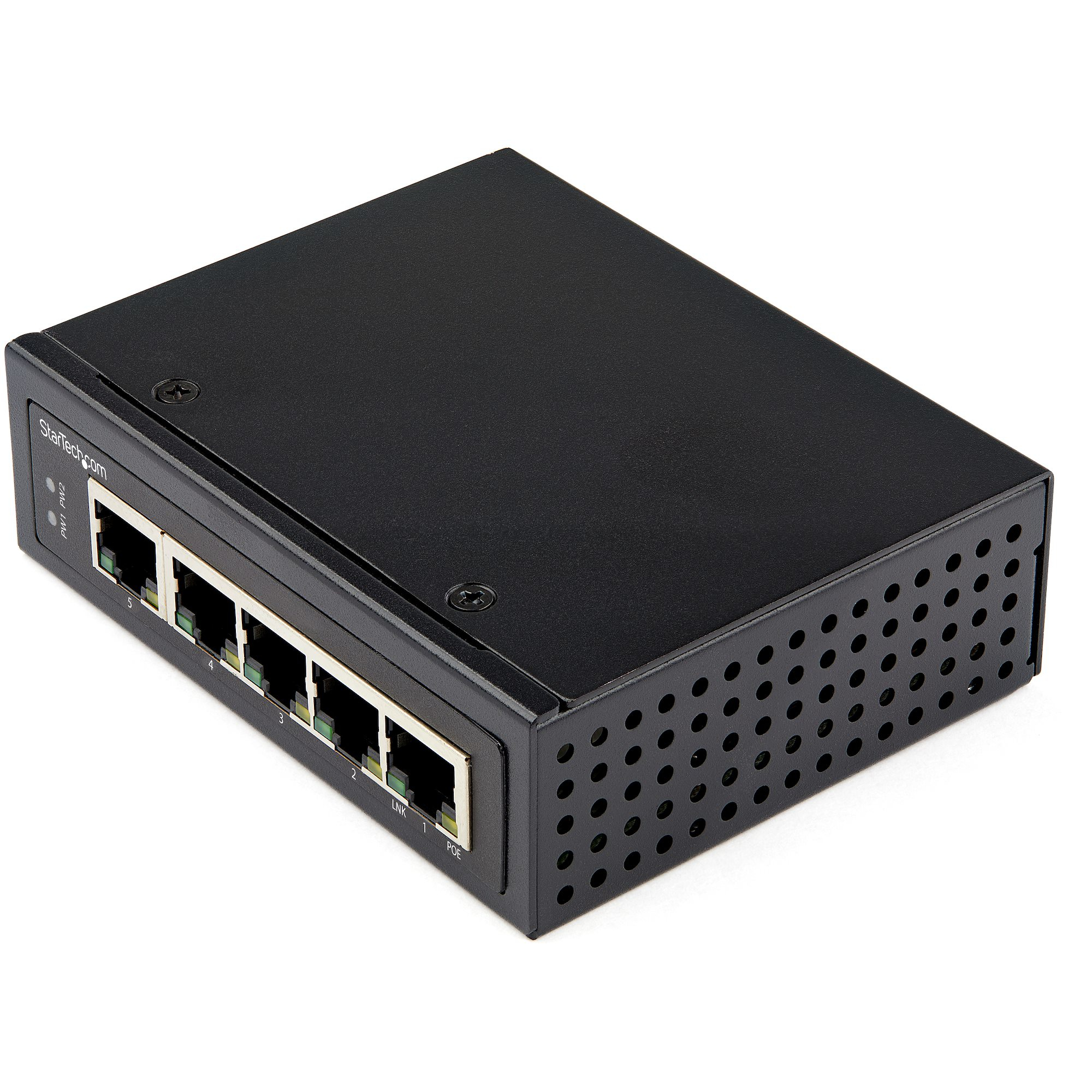

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
Cameras
Sensors
Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
Operating Temperature Range: -40 C to 75 C
IP-30 rated housing
Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
The StarTech.com Advantage
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Networking |
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Power |
| DC input voltage |
48 - 56 V |
| Surge protection |
Yes |
| Surge protection voltage |
2 kV |
| Power plug type |
Type N |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
81.5 mm |
| Depth |
104 mm |
| Height |
32 mm |
| Weight |
150.6 g |
| Packaging data |
| Terminal block included |
Yes |
| Package width |
211 mm |
| Package depth |
162 mm |
| Package height |
64 mm |
| Package weight |
392.6 g |
| Data transmission |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Management features |
| Switch type |
Unmanaged |
| Protocols |
| Supported network protocols |
CSMA/CD |
| Other features |
| Terminal block port |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
5 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
120 W |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| DIN rail mounting |
Yes |
| Safety |
EN60950-1 |
| Performance |
| Maximum cable length |
100 m |
| Mean time between failures (MTBF) |
538451 h |
| Logistics data |
| Master (outer) case width |
355 mm |
| Master (outer) case length |
345 mm |
| Master (outer) case height |
225 mm |
| Harmonized System (HS) code |
85176990 |
| Products per master (outer) case |
10 pc(s) |
| Certification |
| Certification |
CE, FCC, RoHS, UL |
| Packaging content |
| Quick start guide |
Yes |
Features
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
Product Description
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
Cameras
Sensors
Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
Operating Temperature Range: -40 C to 75 C
IP-30 rated housing
Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.
A Flexible & Easy-to-Deploy Solution
Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
The StarTech.com Advantage
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
