Stock Status: 1x unit in stock
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

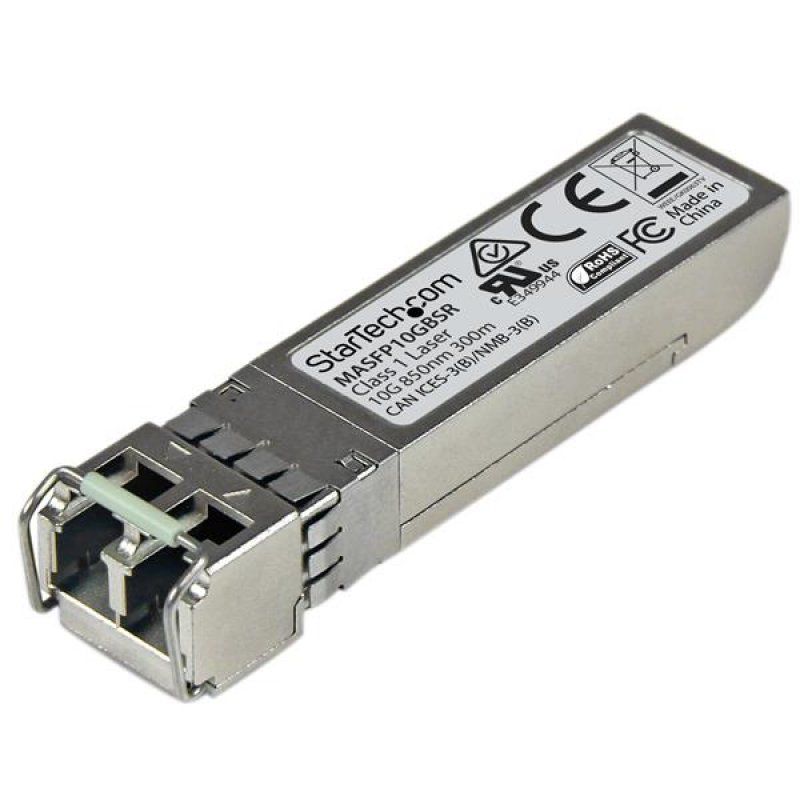

The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco Meraki MA-SFP-10GB-SR guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
54 mm |
| Height |
12.6 mm |
| Weight |
18 g |
| Power |
| Power consumption (typical) |
1.2 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Y |
| Fiber optic connector |
LC |
| SFP transceiver standard |
SR |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Networking standards |
IEEE 802.3ae |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Wavelength-division multiplexing (WDM) |
N |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
1967709 h |
| Certification |
CE, FCC, UR |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
117 mm |
| Package depth |
93 mm |
| Package height |
34 mm |
| Package weight |
47 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ Transceiver Module - 10GBASE-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1967709 h. Power consumption (typical): 1.2 W. Width: 13.9 mm, Depth: 54 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 117 mm, Package depth: 93 mm
Product Description
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco Meraki MA-SFP-10GB-SR guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
