Stock Status: 1x unit in stock
Supply power and data to two PoE devices over standard Ethernet cabling

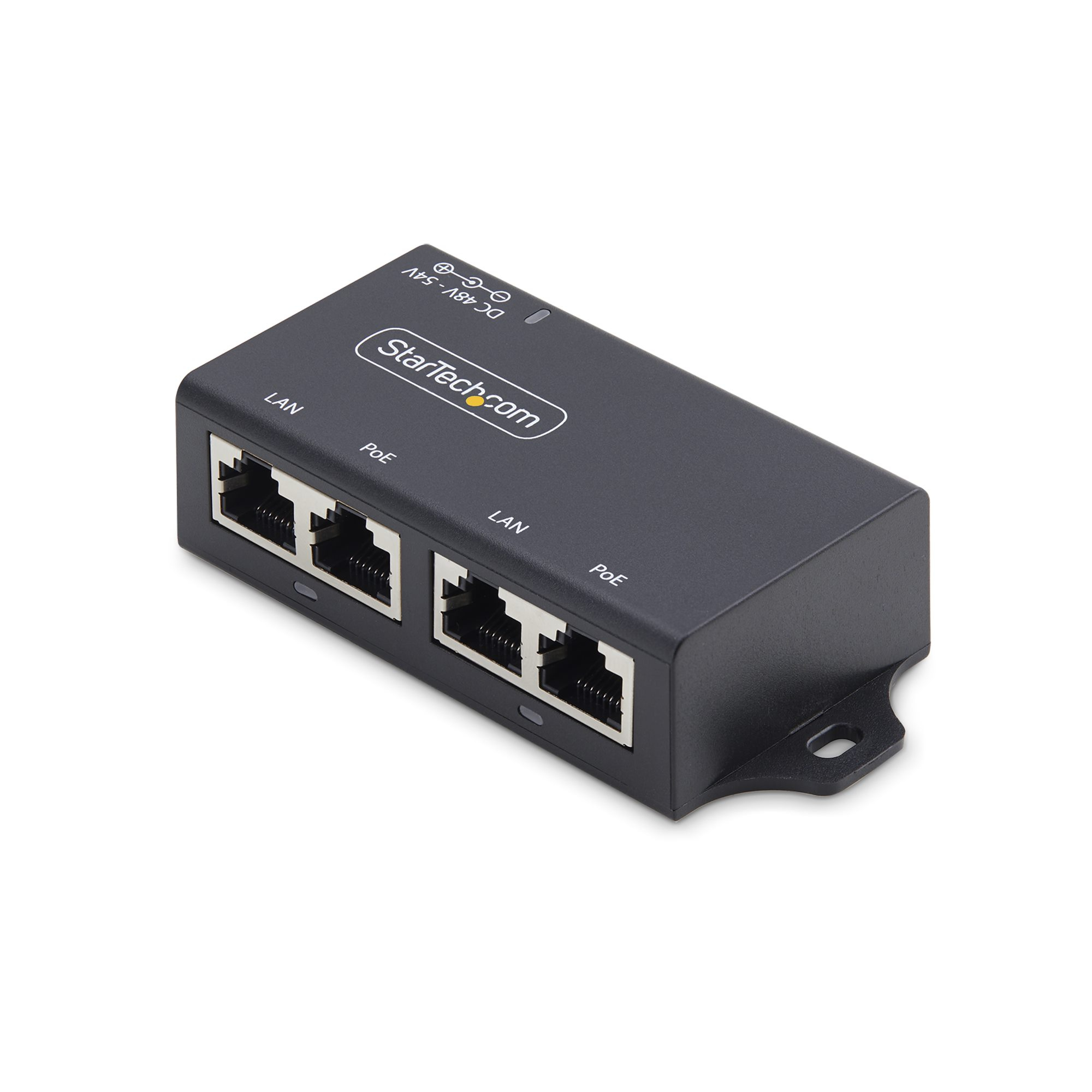

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
Specs
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| RJ-45 input ports |
2 |
| RJ-45 output ports |
2 |
| DC-in jack |
Yes |
| Networking |
| Ethernet interface type |
Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Cabling technology |
10/100/1000 |
| Power over Ethernet (PoE) |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at |
| Auto MDI/MDI-X |
Yes |
| Web-based management |
No |
| Chipset |
IC Plus - IP802AR |
| Weight & dimensions |
| Width |
46 mm |
| Depth |
102 mm |
| Height |
25 mm |
| Weight |
60 g |
| Power |
| Output power |
30 W |
| AC adapter input voltage |
100 - 240 V |
| Input current |
1.5 A |
| AC adapter output voltage |
52 V |
| Output current |
1.25 A |
| Power consumption (max) |
65 W |
| Total Power over Ethernet (PoE) budget |
30 W |
| Surge protection voltage |
2 kV |
| Power plug type |
Type M |
| Suitable for use in country/location |
Europe, United Kingdom |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Packaging content |
| Quick installation guide |
Yes |
| Features |
| Product colour |
Black |
| Housing material |
Plastic |
| Wall mountable |
Yes |
| Surge protection |
Yes |
| Maximum operating distance |
100 m |
| LED indicators |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Auto-negotiation |
Yes |
| Logistics data |
| Master (outer) case width |
440 mm |
| Master (outer) case length |
420 mm |
| Master (outer) case height |
320 mm |
| Products per master (outer) case |
40 pc(s) |
| Packaging data |
| Package width |
207 mm |
| Package depth |
144 mm |
| Package height |
38 mm |
| Package weight |
105 g |
| Certification |
| Compliance certificates |
RoHS |
Features
StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Ethernet LAN data rates: 10,1000,100 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Housing material: Plastic, Maximum operating distance: 100 m. Output power: 30 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Compliance certificates: RoHS. Width: 46 mm, Depth: 102 mm, Height: 25 mm
Product Description
Supply power and data to two PoE devices over standard Ethernet cabling
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
