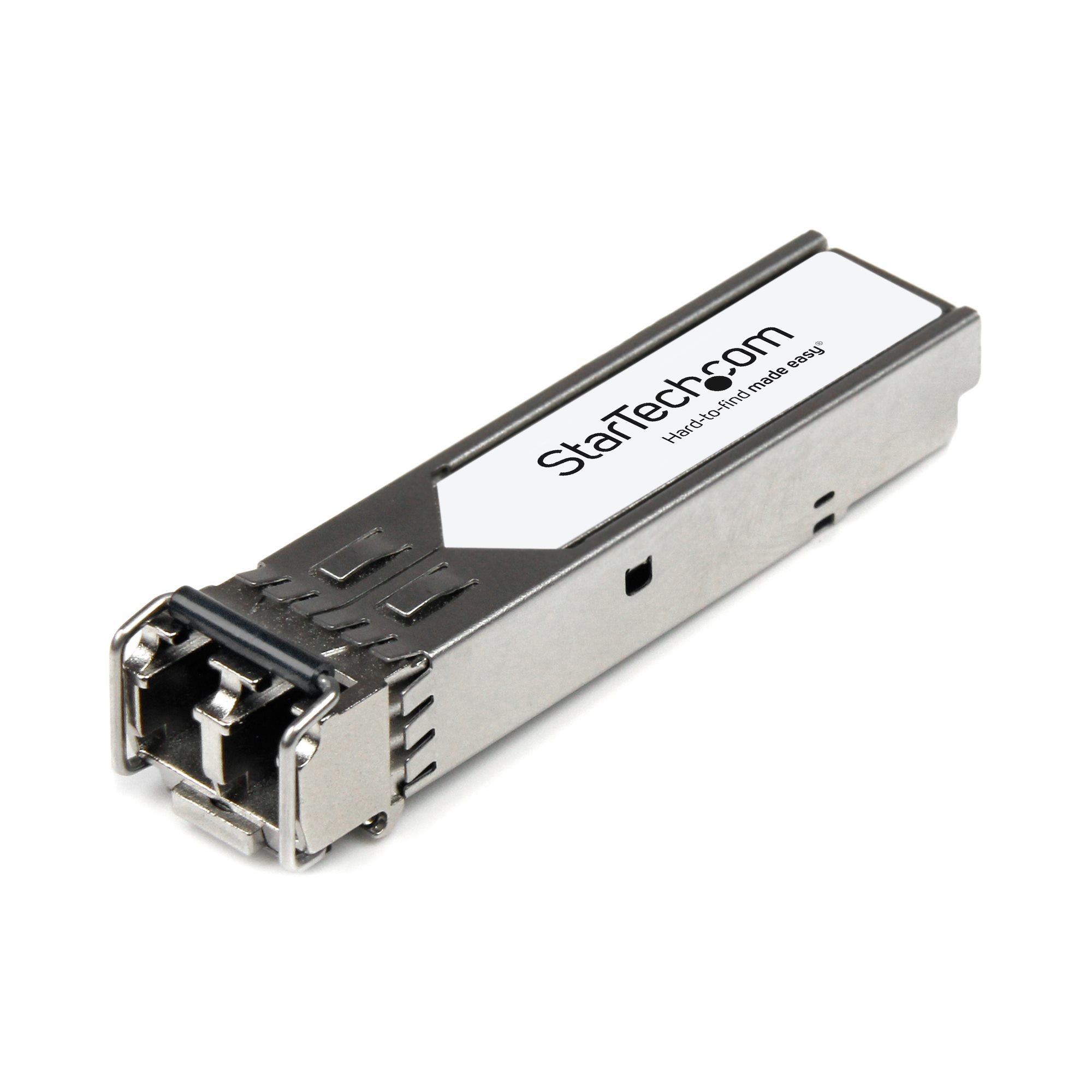

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe SX-ST is a Palo Alto PAN-SFP-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:• Wavelength: 850nm• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)• Type: Multi Mode• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• MTBF: 95,832,027 hours• Power Consumption: Low power consumption• Digital Diagnostics Monitoring (DDM): YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
58.4 mm |
| Depth |
13.9 mm |
| Height |
13.7 mm |
| Weight |
20 g |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC |
| SFP transceiver standard |
SX |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Fiber ethernet cabling technology |
1000BASE |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
95832027 h |
| Brand compatibility |
Palo Alto Networks |
| Compatible products |
SX |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
90 mm |
| Master (outer) case length |
115 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
31 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
31 mm |
| Package weight |
50 g |
Features
StarTech.com Palo Alto Networks SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 95832027 h, Brand compatibility: Palo Alto Networks. Width: 58.4 mm, Depth: 13.9 mm, Height: 13.7 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 115 mm. Master (outer) case width: 90 mm, Master (outer) case length: 115 mm, Master (outer) case height: 31 mm
Product Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe SX-ST is a Palo Alto PAN-SFP-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:• Wavelength: 850nm• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)• Type: Multi Mode• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• MTBF: 95,832,027 hours• Power Consumption: Low power consumption• Digital Diagnostics Monitoring (DDM): YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
