Stock Status: 1x unit in stock

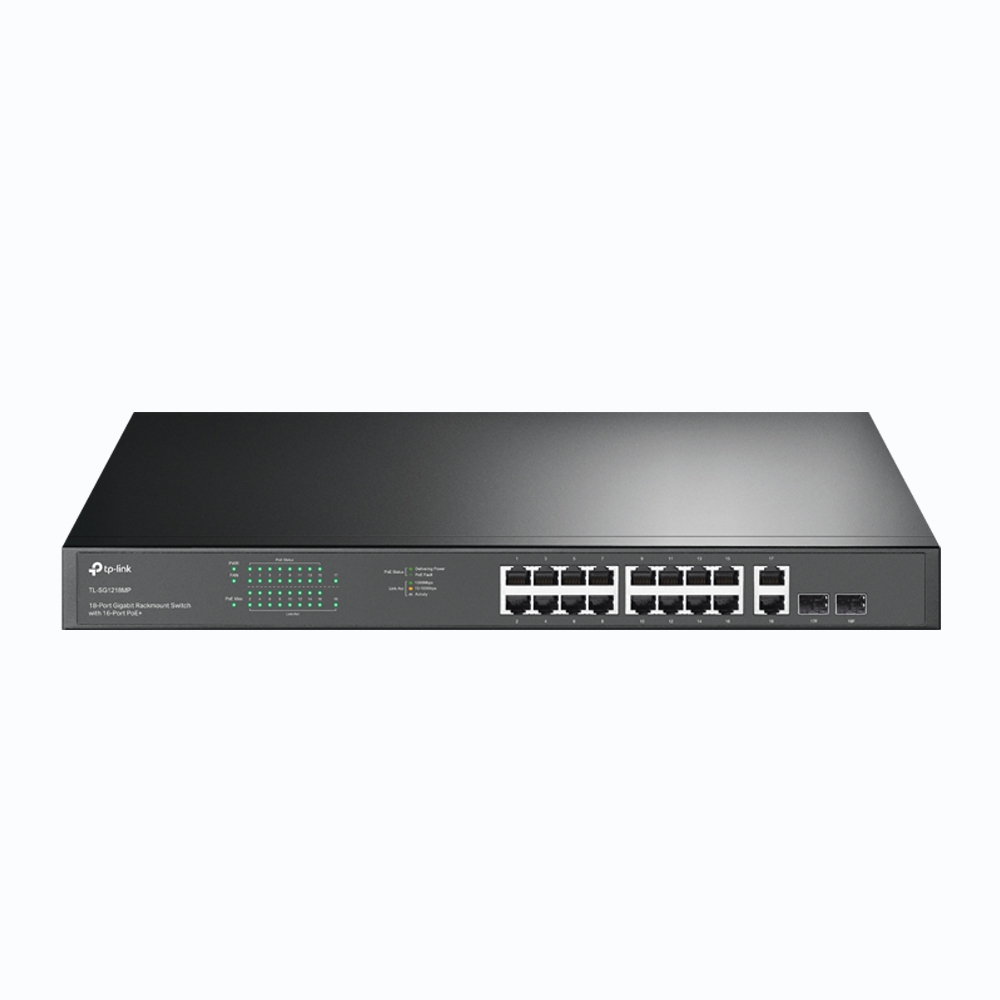

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Combo SFP ports quantity |
2 |
| Networking |
| Networking standards |
IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Full duplex |
Y |
| Half duplex |
Y |
| Flow control support |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
286.64 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
977.44 BTU/h |
| Weight & dimensions |
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging data |
| Cables included |
AC |
| Quick start guide |
Y |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Forwarding rate |
26.78 Mpps |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| Packet buffer memory |
4.1 MB |
| Management features |
| Quality of Service (QoS) support |
Y |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
150 W |
| Design |
| Rack mounting |
Y |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Y |
| Number of fans |
2 fan(s) |
| Certification |
CE, FCC, RoHS |
Features
TP-LINK 18-Port Gigabit Rackmount Switch with 16 PoE+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
Product Description
Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
