Stock Status: 1x unit in stock
All in Seconds with Blazing Fast 2.5G Speeds
Incredible 2.5G Networking
2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
Household Storage, Share in Seconds
For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
2.5G Extremely Fast Internet Response
With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
Versatile, Multi-Speed Compatibility
2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.
QoS Support
Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management.
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Easy Setup
Simple software installation with the intuitive Utility on the provided CD.
Comprehensive System Support
Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.
Specs
| Networking |
| Maximum data transfer rate |
2500 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Full duplex |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Weight & dimensions |
| Width |
120.8 mm |
| Depth |
21.5 mm |
| Height |
98.2 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| PCI version |
2.1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
| Internal |
Yes |
| Component for |
PC/Laptop |
| Product colour |
Black, Grey |
| LED indicators |
Activity, Link |
| Packaging data |
| Package width |
201.5 mm |
| Package depth |
152.5 mm |
| Package height |
41.5 mm |
| Package weight |
170 g |
| Technical details |
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Packaging content |
| Mounting brackets included |
Yes |
| Resource CD |
Yes |
| Quick installation guide |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
Features

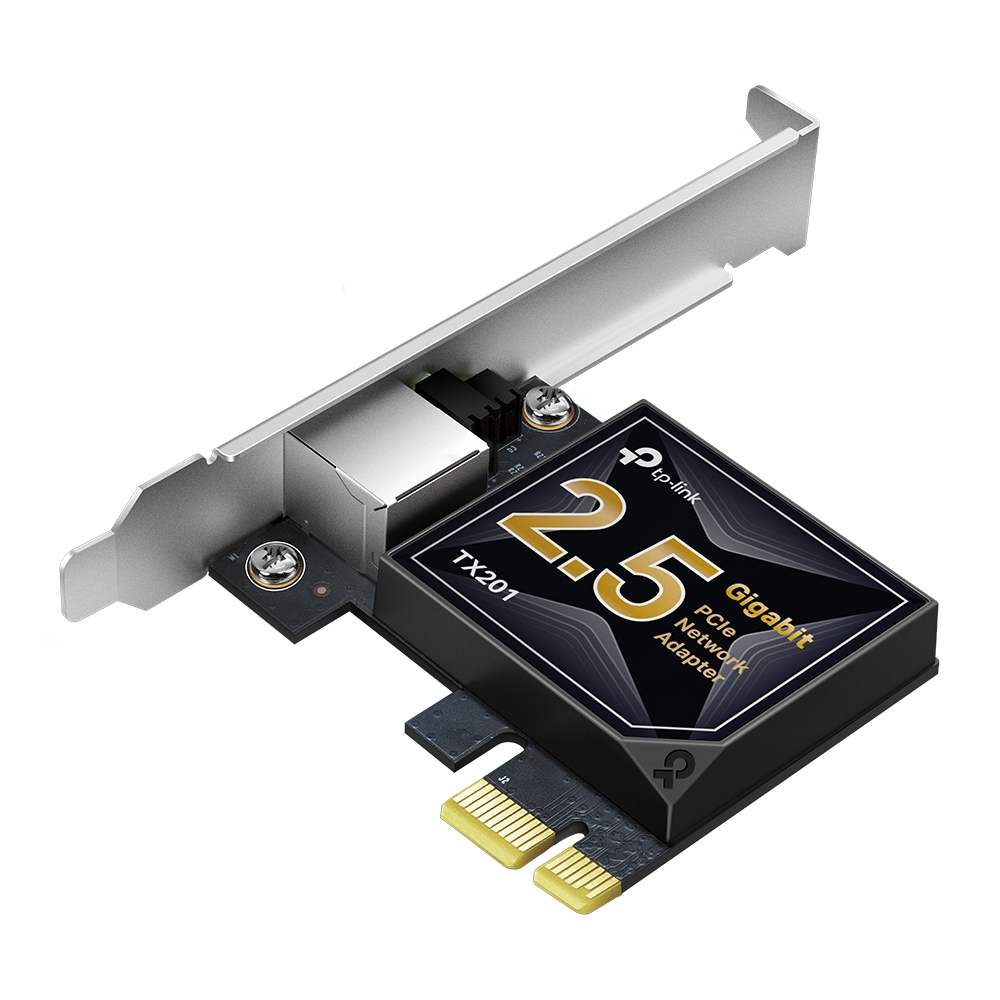

TP-Link 2.5 Gigabit PCIe Network Adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black, Grey
Product Description
All in Seconds with Blazing Fast 2.5G Speeds
Incredible 2.5G Networking
2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
Household Storage, Share in Seconds
For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
2.5G Extremely Fast Internet Response
With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
Versatile, Multi-Speed Compatibility
2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.
QoS Support
Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.
Wake On LAN
Remotely power on/off your computer with WOL, good for centralized management.
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Easy Setup
Simple software installation with the intuitive Utility on the provided CD.
Comprehensive System Support
Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.
