Stock Status: 1x unit in stock
Expand Coverage of the Fastest Next-Gen Wi-Fi

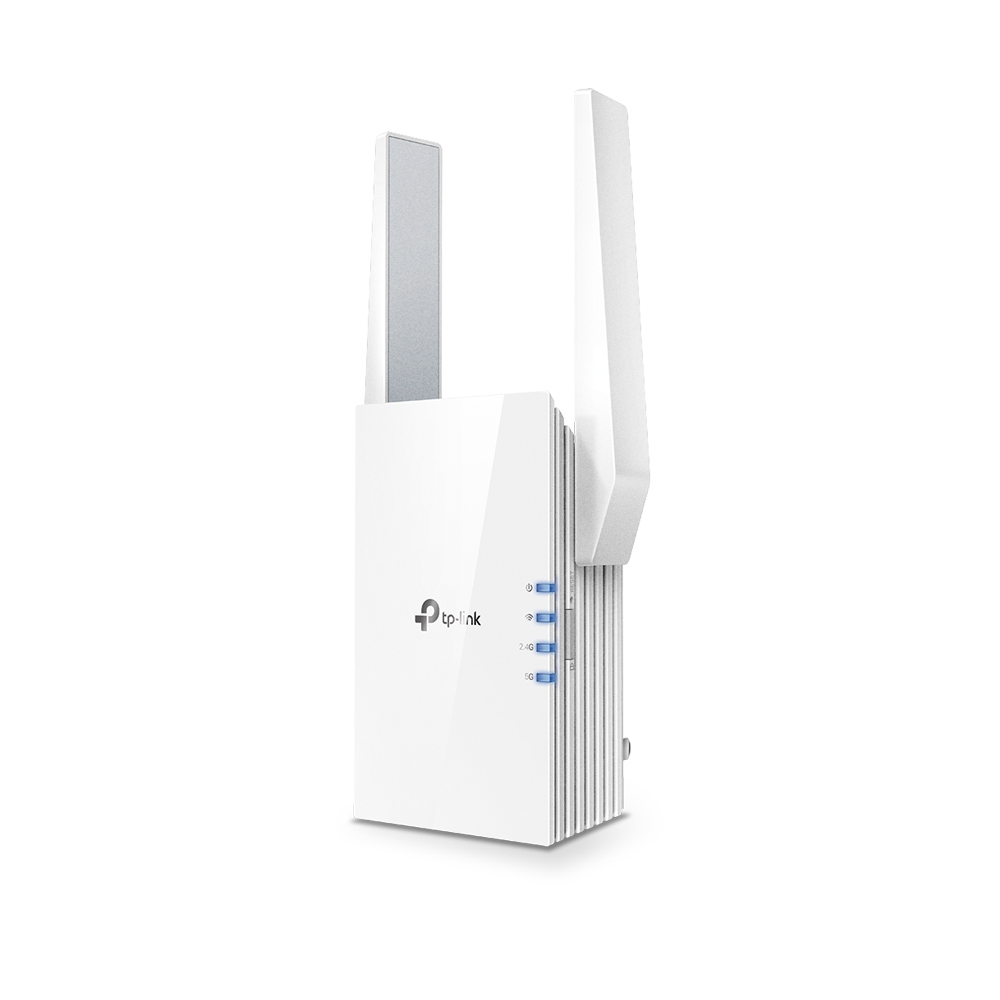

AX1500 Range Extender
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.
Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
Dual Band, More Benefits
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.
Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.
TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
Smart Roaming
Uninterrupted streaming when moving around your home
One Wi-Fi Name
No more switching Wi-Fi network names
Easy Creation
OneMesh Router and OneMesh Range Extenders pair instantly
Unified Management
Manage the entire network all from the TP-Link Tether app
Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set? Update your existing TP-Link router’s firmware to the OneMeshTM version—no need to replace anything. Connect the RE505X to the router. Enjoy your Mesh network.
Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
Specs
| Weight & dimensions |
| Width |
124.8 mm |
| Depth |
46 mm |
| Height |
74 mm |
| Packaging data |
| Package type |
Box |
| Networking |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi |
Y |
| Wi-Fi standards |
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) |
1300 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms |
64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
10 W |
| Packaging content |
| Manual |
Y |
| Quick start guide |
Y |
| Design |
| Product colour |
White |
| LED indicators |
Power, WAN, WLAN |
| On/off switch |
Y |
| Reset button |
Y |
| Certification |
FCC, RoHS |
| Antenna |
| Antennas quantity |
2 |
| Antenna type |
External |
| Performance |
| Type |
Network transmitter & receiver |
| Data transfer rate |
1200 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto MDIX IEEE |
Y |
| Auto-negotiation |
Y |
| Plug and Play |
Y |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Window |
| Mac compatibility |
Y |
| Mac operating systems supported |
Y |
| Linux operating systems supported |
Y |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Technical details |
| Sustainability certificates |
RoHS |
Features
TP-LINK RE505X. Type: Network transmitter & receiver, Data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Product colour: White, LED indicators: Power, WAN, WLAN, Certification: FCC, RoHS. Power consumption (max): 10 W
Product Description
Expand Coverage of the Fastest Next-Gen Wi-Fi
AX1500 Range Extender
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.
Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
Dual Band, More Benefits
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.
Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.
TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
Smart Roaming
Uninterrupted streaming when moving around your home
One Wi-Fi Name
No more switching Wi-Fi network names
Easy Creation
OneMesh Router and OneMesh Range Extenders pair instantly
Unified Management
Manage the entire network all from the TP-Link Tether app
Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set? Update your existing TP-Link router’s firmware to the OneMeshTM version—no need to replace anything. Connect the RE505X to the router. Enjoy your Mesh network.
Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
