Stock Status: 1x unit in stock
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Specs
| Weight & dimensions |
| Width |
366 mm |
| Depth |
280 mm |
| Height |
207 mm |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 70 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Power |
| Power source type |
PoE |
| Input voltage |
24 V |
| Features |
| Antenna type |
Directional antenna |
| Antenna connector type |
PoE/LAN |
| Product colour |
White |
| Housing material |
Plastic |
| International Protection (IP) code |
IP65 |
| LED indicators |
Power |
| Packaging content |
| Cables included |
AC |
| Performance |
| Antenna gain level (max) |
23 dBi |
| Frequency band |
5.15 - 5.85 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Gain |
23 dBi |
| Horizontal beam width |
9° |
| Vertical beam width |
7° |
| Built-in processor |
Yes |
| Processor frequency |
750 MHz |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Wi-Fi standards |
802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Logistics data |
| Export Control Classification Number (ECCN) |
EAR99 |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
CE, FCC, RoHS, IC |
| Packaging data |
| Package type |
Box |
Features

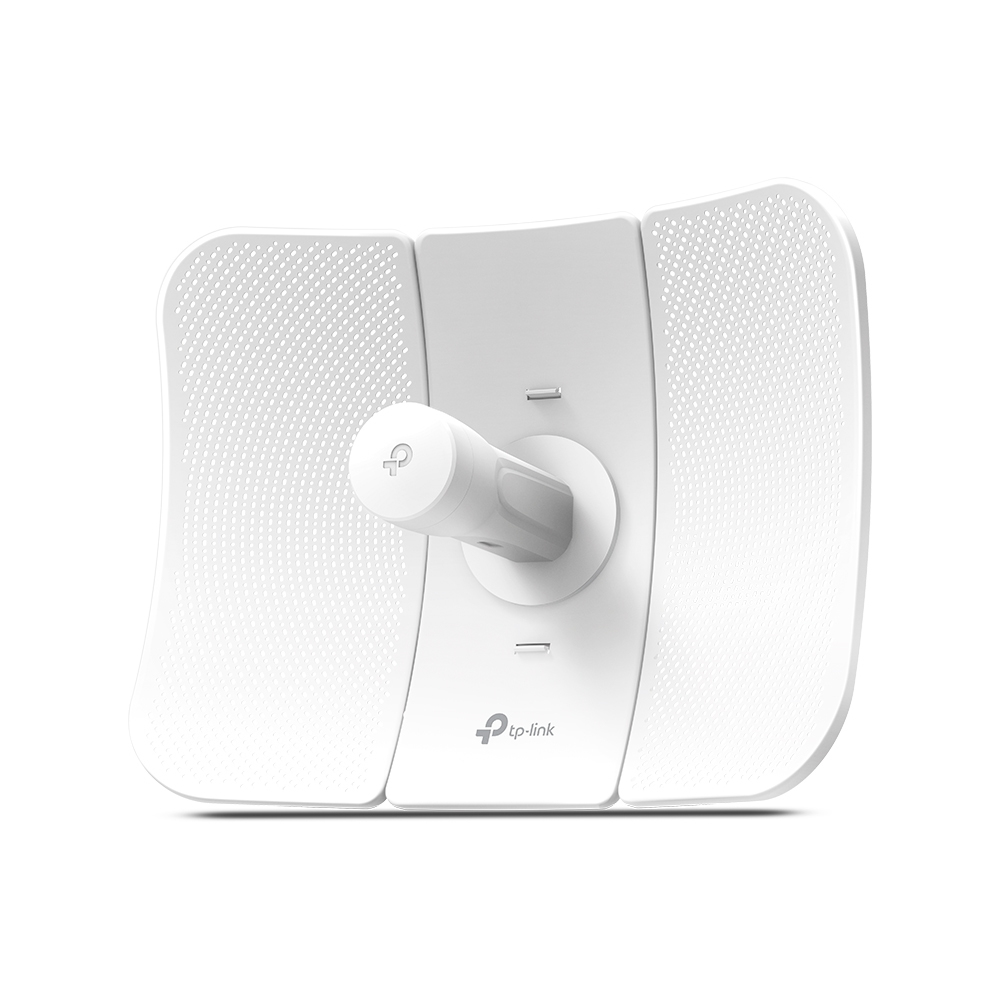

TP-Link CPE710. Antenna gain level (max): 23 dBi, Frequency band: 5.15 - 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: PoE/LAN, Product colour: White. Power source type: PoE, Input voltage: 24 V. Certification: CE, FCC, RoHS, IC. Width: 366 mm, Depth: 280 mm, Height: 207 mm
Product Description
Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
