Stock Status: 1x unit in stock
Realize More Possibilities with Omada

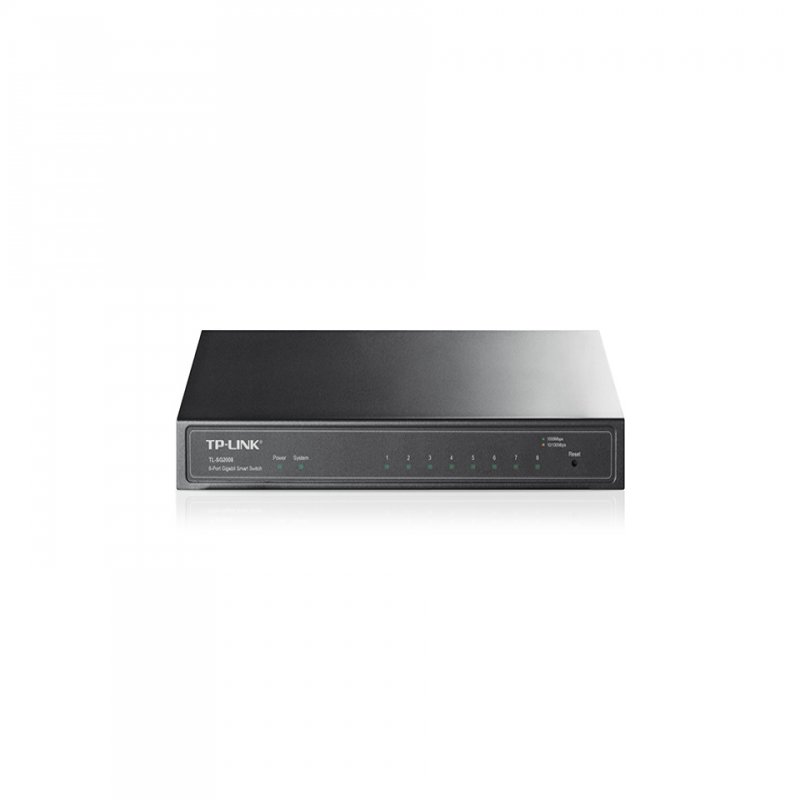

JetStream 8-Port Gigabit Smart Switch
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Port mirroring |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Auto MDI/MDI-X |
Y |
| Spanning tree protocol |
Y |
| Auto-negotiation |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Voice VLAN |
| Number of VLANs |
512 |
| Power |
| AC input voltage |
100 - 240 V |
| AC input frequency |
60 Hz |
| DC input voltage |
12 V |
| Input current |
1 A |
| Power consumption (max) |
6.42 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Security |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Security algorithms |
SSH,SSH-2,SSL/TLS |
| SSH/SSL support |
Y |
| Packaging data |
| Cables included |
AC |
| User guide |
Y |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Forwarding rate |
11.9 Mpps |
| Jumbo frames support |
Y |
| Jumbo frames |
9216 |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| MIB support |
Y |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Design |
| Product colour |
Black |
| LED indicators |
Y |
| Certification |
CE, FCC, RoHS |
| Performance |
| Fanless |
Y |
| Multicast features |
| Multicast support |
Y |
Features
TP-LINK JetStream 8-Port Gigabit Smart Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack
Product Description
Realize More Possibilities with Omada
JetStream 8-Port Gigabit Smart Switch
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
