Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds

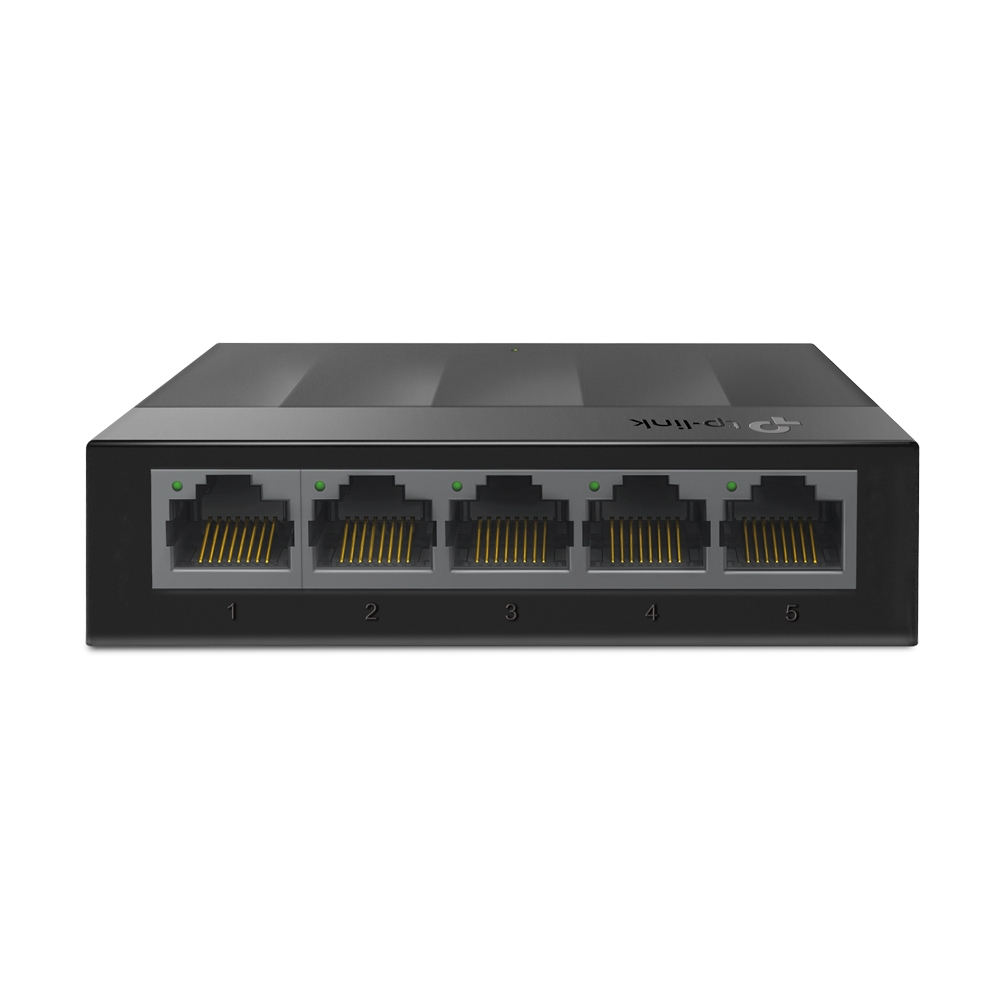

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Networking |
| Networking standards |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Power |
| Power supply included |
Y |
| DC input voltage |
5 V |
| Input current |
0.6 A |
| Power consumption (max) |
3.7 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
12.617 BTU/h |
| Weight & dimensions |
| Width |
90 mm |
| Depth |
72 mm |
| Height |
23 mm |
| Packaging data |
| Quick start guide |
Y |
| Package type |
Box |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.4 Mpps |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| Packet buffer memory |
1.5 MB |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
N |
| Design |
| Rack mounting |
N |
| Product colour |
Black |
| Housing material |
Plastic |
| LED indicators |
Y |
| International Protection (IP) code |
IP20, IP40 |
| Wall mountable |
Y |
| Certification |
CE, FCC, RoHS |
Features
TP-LINK LS1005G. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 5 V. Wall mountable
Product Description
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
