Stock Status: 1x unit in stock

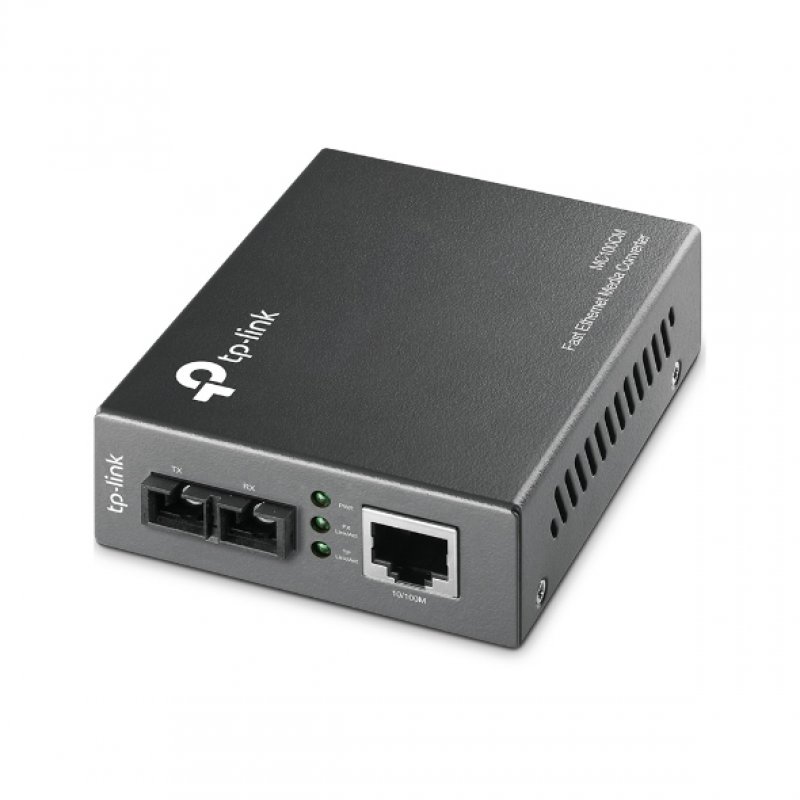

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Specs
| Networking |
| Maximum data transfer rate |
100 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| Duplex system |
Full, Half |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Weight & dimensions |
| Width |
95 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Ports & interfaces |
| Fiber optic connector |
SC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Power |
| Power consumption (max) |
2.4 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
| Manual |
Yes |
| Design |
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Performance |
| Maximum transfer distance |
2000 m |
| Wavelength |
1310 nm |
| Fiber mode structure |
Multi-mode |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Technical details |
| Compliance certificates |
RoHS |
Features
TP-Link MC100CM. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet LAN data rates: 10,100 Mbit/s. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. Product colour: Black. Power consumption (max): 2.4 W
Product Description
The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
