Stock Status: 1x unit in stock
Dedicated In Network Centralized Management

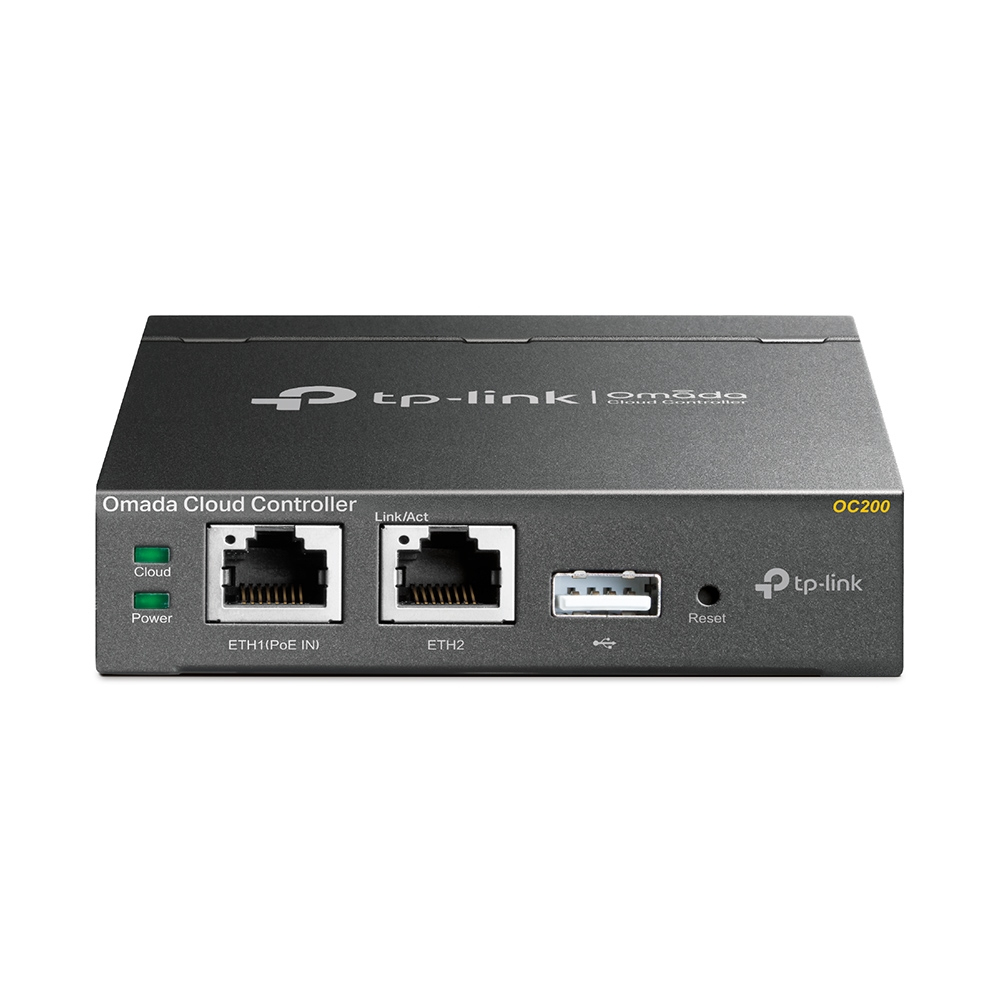

The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
Specs
| Technical details |
| Built-in processor |
Y |
| Number of processors installed |
1 |
| Processor frequency |
1000 MHz |
| Management platform |
L3 |
| Harmonized System (HS) code |
85176990 |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
| Power consumption (typical) |
5 W |
| Power over Ethernet (PoE) |
Yes |
| DC input voltage |
5 V |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Networking |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Security |
| MAC address filtering |
Yes |
| Security algorithms |
SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VLAN support |
Yes |
| Access Control List (ACL) |
Yes |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Illumination/Alarms |
| LED indicators |
Y |
| Indication |
| LED indicators |
Y |
| Operating system/software |
| Compatible operating systems |
Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux |
| Software |
| Compatible operating systems |
Windows10, 8, 7,Vista, XP; MAC OS; NetWare, UNIX; Linux |
| Memory |
| Internal memory |
1024 MB |
| Flash memory |
4000 MB |
| Internal memory type |
DDR3 |
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| Management platform |
L3 |
| Packaging content |
| Cables included |
LAN (RJ-45) |
| Quick installation guide |
Yes |
| Performance |
| Control display unit |
No |
| Built-in processor |
Yes |
| Processor frequency |
1200 MHz |
| Number of processors installed |
1 |
| Internal memory |
1024 MB |
| Internal memory type |
DDR3 |
| Flash memory |
4000 MB |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Design |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Product colour |
Black |
| Display |
| Control display unit |
N |
| Features |
| Antenna type |
Internal |
Features
TP-Link Omada Hardware Controller. Product colour: Black, Certification: CE, FCC, RoHS. Antenna type: Internal. Processor frequency: 1200 MHz, Internal memory: 1024 MB, Internal memory type: DDR3. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at. Security algorithms: SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product Description
Dedicated In Network Centralized Management
The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.
Free Cloud Management – Anywhere, Anytime
Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.
Industry Leading Hardware Design
Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.
Guest Network with Facebook Wi-Fi and SMS Login
Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.
Even More Convenient with Omada App
Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
