Stock Status: 1x unit in stock
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Networking |
| Networking standards |
IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q |
| 10G support |
No |
| Zero Touch Provisioning (ZTP) |
Yes |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Fast leave |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Number of VLANs |
32 |
| Power |
| Power source |
DC |
| Power supply included |
Yes |
| DC input voltage |
5 V |
| Input current |
0.6 A |
| Power consumption (max) |
2.7 W |
| Surge protection |
Yes |
| Surge protection voltage |
6 kV |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
9.09 BTU/h |
| Weight & dimensions |
| Width |
158 mm |
| Depth |
100.7 mm |
| Height |
25.4 mm |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Packaging data |
| AC adapter included |
Yes |
| Package type |
Box |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Forwarding rate |
11.9 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Packet buffer memory |
4 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Unified static configuration |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Performance |
| Flash memory |
64 MB |
| Firmware upgradeable |
Yes |
| Fanless |
Yes |
| Mean time between failures (MTBF) |
1141726 h |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
| User guide |
Yes |
Features

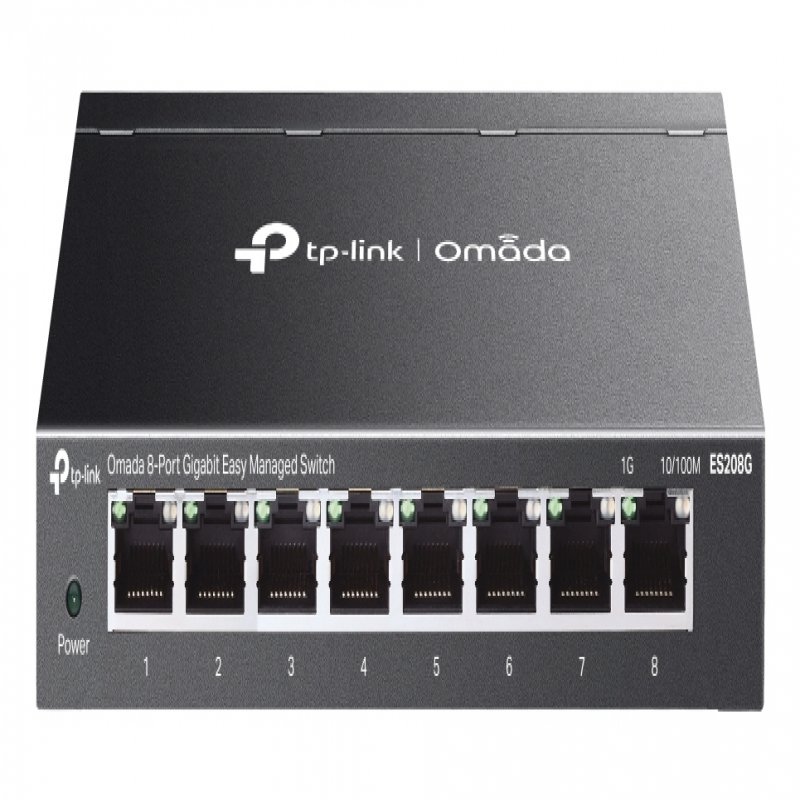

TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q. DC input voltage: 5 V. Wall mountable
Product Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
