Stock Status: 1x unit in stock

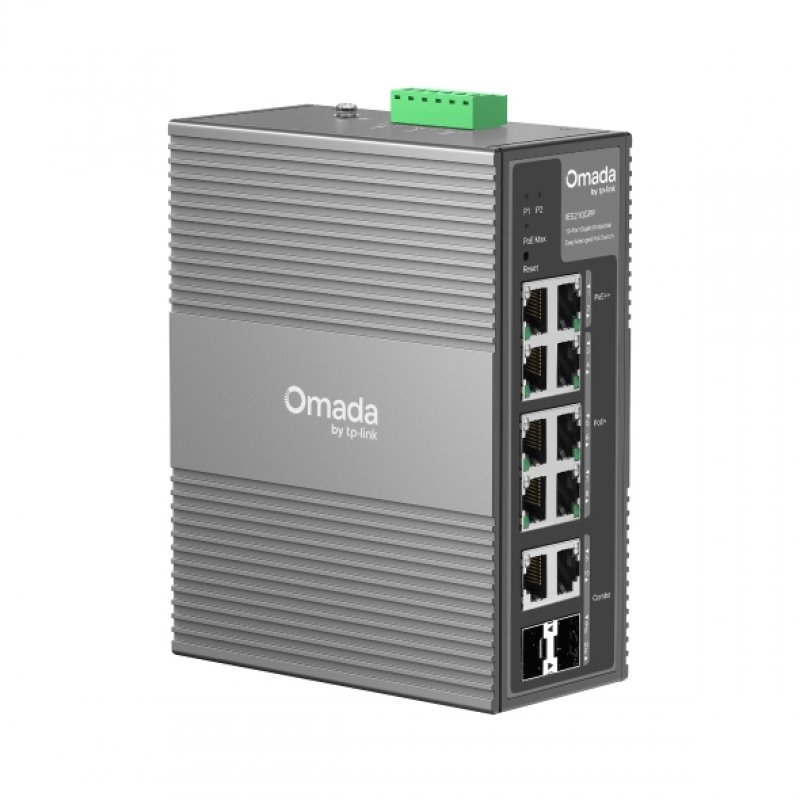

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
| Networking |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support |
No |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto-negotiation |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Power |
| Power source |
DC |
| DC input voltage |
12 - 57 V |
| Weight & dimensions |
| Width |
155 mm |
| Depth |
120 mm |
| Height |
60 mm |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15000 |
| Packet buffer memory |
4000 MB |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
6 |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
2 |
| Total Power over Ethernet (PoE) budget |
240 W |
| Design |
| Rack mounting |
Yes |
| Form factor |
DIN rail |
| Product colour |
Grey |
| LED indicators |
Yes |
| Multicast features |
| Multicast support |
Yes |
Features
TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 12 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail
Product Description
Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
