Stock Status: 1x unit in stock

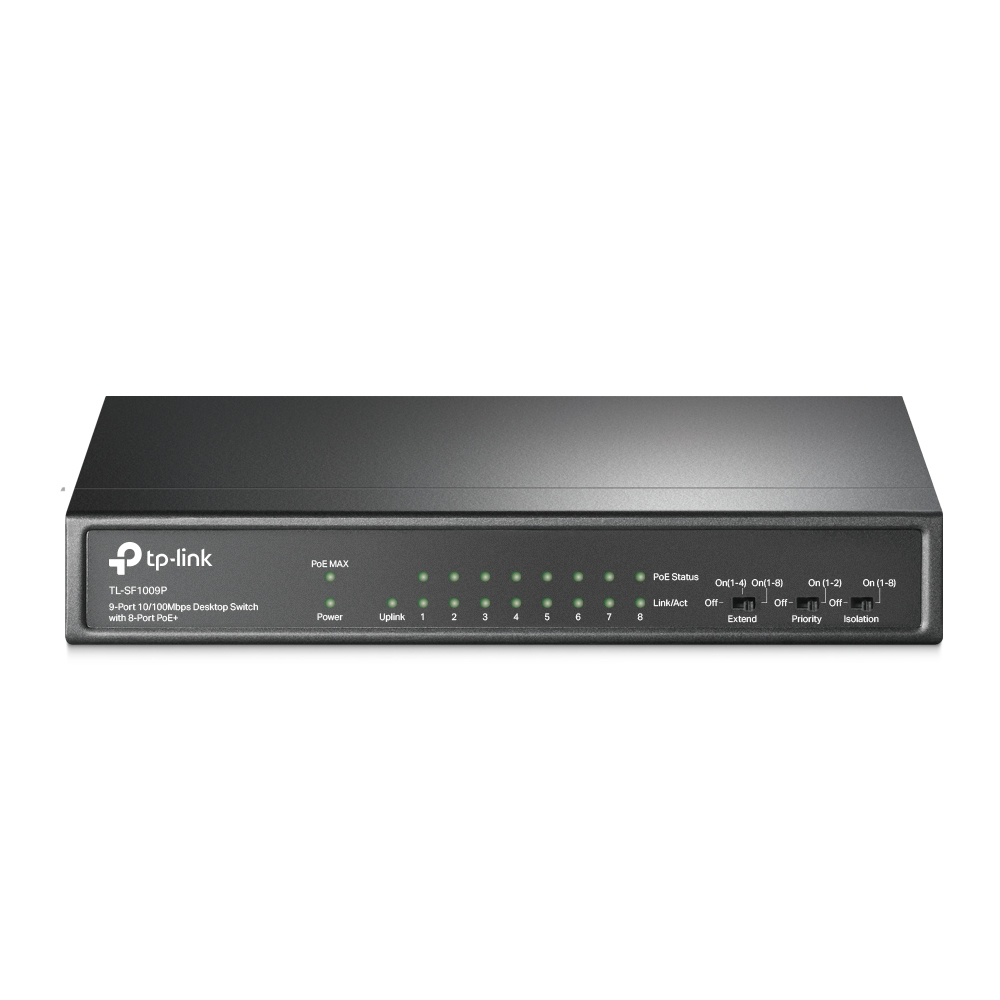

TL-SF1009P is an unmanaged switch with 9 10/100Mbps ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 of the 9 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1009P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ? 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 = port 2 = port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 1, 2 and 4 is using 20 W (maximum power per port is 30 W); the system power is 60 W in total. If there is an additional PD inserted to port 3 with 20 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, and 3 will use 20 W, no power will be supplied to port 4.
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode.
- Priority Mode ensures high priority of port 1–2 to guarantee the quality of sensitive application.
- Isolation Mode easily divides traffic for port 1–8 to avoid snooping and tampering, which improves LAN security and performance.
Easy to Use
TL-SF1009P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TL-SF1009P is a great selection for expanding your network.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Networking |
| Networking standards |
IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Half duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Power |
| Power supply included |
Y |
| Power consumption (max) |
77.08 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
262.84 BTU/h |
| Weight & dimensions |
| Width |
171 mm |
| Depth |
98 mm |
| Height |
27 mm |
| Packaging data |
| Quick start guide |
Y |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
1.8 Gbit/s |
| Store-and-forward |
Y |
| Management features |
| Switch type |
Unmanaged |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
65 W |
| Design |
| Product colour |
Black |
| LED indicators |
Activity, Link, PoE, Power |
| Certification |
FCC, CE, RoHS |
| Performance |
| Fanless |
Y |
Features
TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3x. Power over Ethernet (PoE)
Product Description
TL-SF1009P is an unmanaged switch with 9 10/100Mbps ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 of the 9 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1009P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ? 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 = port 2 = port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 1, 2 and 4 is using 20 W (maximum power per port is 30 W); the system power is 60 W in total. If there is an additional PD inserted to port 3 with 20 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, and 3 will use 20 W, no power will be supplied to port 4.
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode.
- Priority Mode ensures high priority of port 1–2 to guarantee the quality of sensitive application.
- Isolation Mode easily divides traffic for port 1–8 to avoid snooping and tampering, which improves LAN security and performance.
Easy to Use
TL-SF1009P is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ TL-SF1009P is a great selection for expanding your network.
