Stock Status: 1x unit in stock

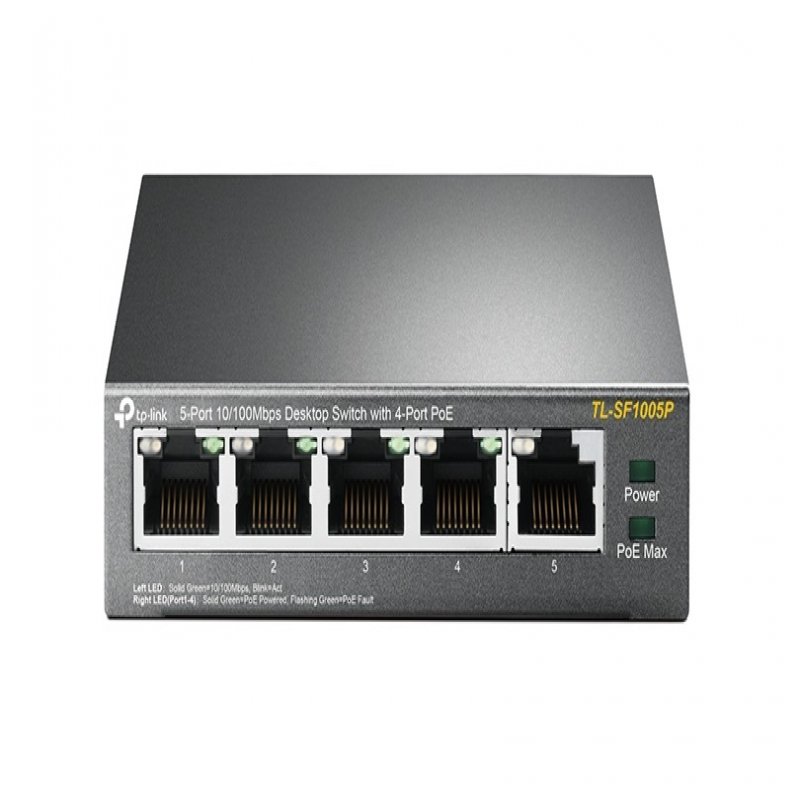

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Networking |
| Networking standards |
IEEE 802.3af, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Auto-negotiation |
Yes |
| Power |
| Power supply included |
Yes |
| Output voltage |
48 V |
| Output current |
1.25 A |
| Power consumption (max) |
63.51 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
5.73 BTU/h |
| Weight & dimensions |
| Width |
99.8 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Packaging data |
| Package type |
Box |
| User guide |
Yes |
| AC adapter included |
Y |
| Data transmission |
| MAC address table |
2000 entries |
| Switching capacity |
1 Gbit/s |
| Store-and-forward |
Yes |
| Management features |
| Switch type |
Unmanaged |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
58 W |
| Design |
| Colour of product |
Black |
| LED indicators |
Yes |
| Certification |
FCC, CE, RoHS |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
| Maximum cable length |
100 m |
| Auto-negotiation |
Y |
| Harmonized System (HS) code |
85176990 |
| Packaging content |
| User guide |
Y |
| AC adapter included |
Y |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
FCC, CE, RoHS |
| Packaging content |
| User guide |
Yes |
Features
TP-Link TL-SF1005P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. Power over Ethernet (PoE)
Product Description
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
