Stock Status: 1x unit in stock
What This Product Does

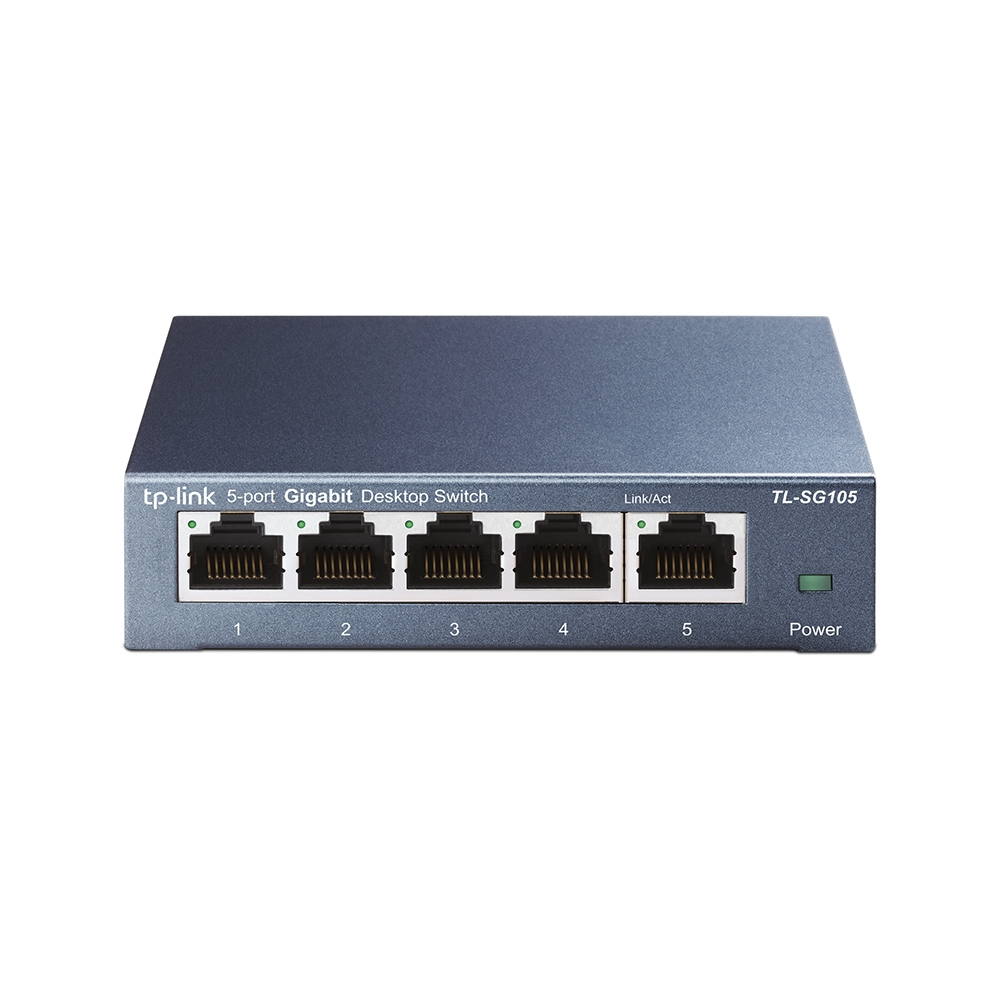

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Flow control support |
Yes |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Auto-negotiation |
Yes |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Power |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| Power connector |
DC-in jack |
| Power supply included |
Yes |
| Input current |
0.6 A |
| Power consumption (max) |
2.3 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
7.83 BTU/h |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Security |
| IGMP snooping |
Yes |
| Packaging data |
| User guide |
Yes |
| Manual |
Y |
| Cables included |
AC |
| Package type |
Box |
| Data transmission |
| Supported data transfer rates |
10/100/1000Mbps |
| Store-and-forward |
Yes |
| Maximum data transfer rate |
2 Gbit/s |
| Jumbo frames support |
Yes |
| MAC address table |
2048 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.4 Mpps |
| Jumbo frames |
16000 |
| Packet buffer memory |
1 MB |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Protocols |
| Switching protocols |
CSMA/CD |
| Other features |
| Connectivity technology |
Wired |
| Wi-Fi |
N |
| Power LED |
Y |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) support |
No |
| Power over Ethernet (PoE) |
No |
| Design |
| Colour of product |
Black |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Product colour |
Black |
| Rack mounting |
No |
| Housing material |
Steel |
| Wall mountable |
Yes |
| Performance |
| Harmonized System (HS) code |
85176990 |
| Packaging content |
| User guide |
Y |
| Manual |
Y |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Multicast features |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Multicast support |
Yes |
Features
TP-Link TL-SG105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Product Description
What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
