Stock Status: 1x unit in stock

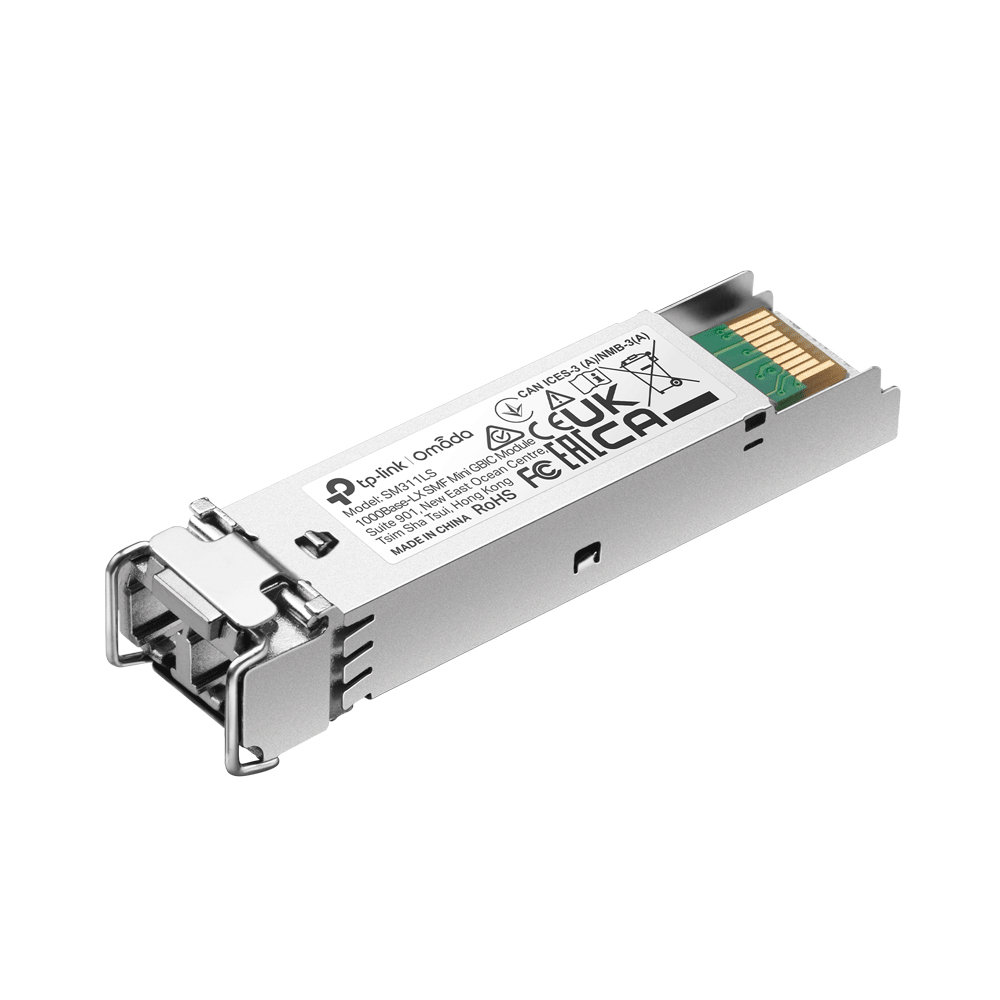

The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
55.4 mm |
| Depth |
14.6 mm |
| Height |
12.9 mm |
| Power |
| Input voltage |
3.3 V |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
mini-GBIC |
| Single-mode fiber (SMF) supported |
Yes |
| Fiber optic connector |
LC |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| SFP transceiver standard |
LX |
| Maximum transfer distance |
20000 m |
| Wavelength |
1310 nm |
| Networking standards |
IEEE 802.3z |
| Fiber ethernet cabling technology |
1000BASE |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Brand compatibility |
MSA Compliant |
| Packaging data |
| Package width |
38 mm |
| Package depth |
207 mm |
| Package height |
38 mm |
| Package weight |
110 g |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Manual |
Yes |
Features
TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC. Product colour: Silver, Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm
Product Description
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
