Stock Status: 1x unit in stock
What This Product Does

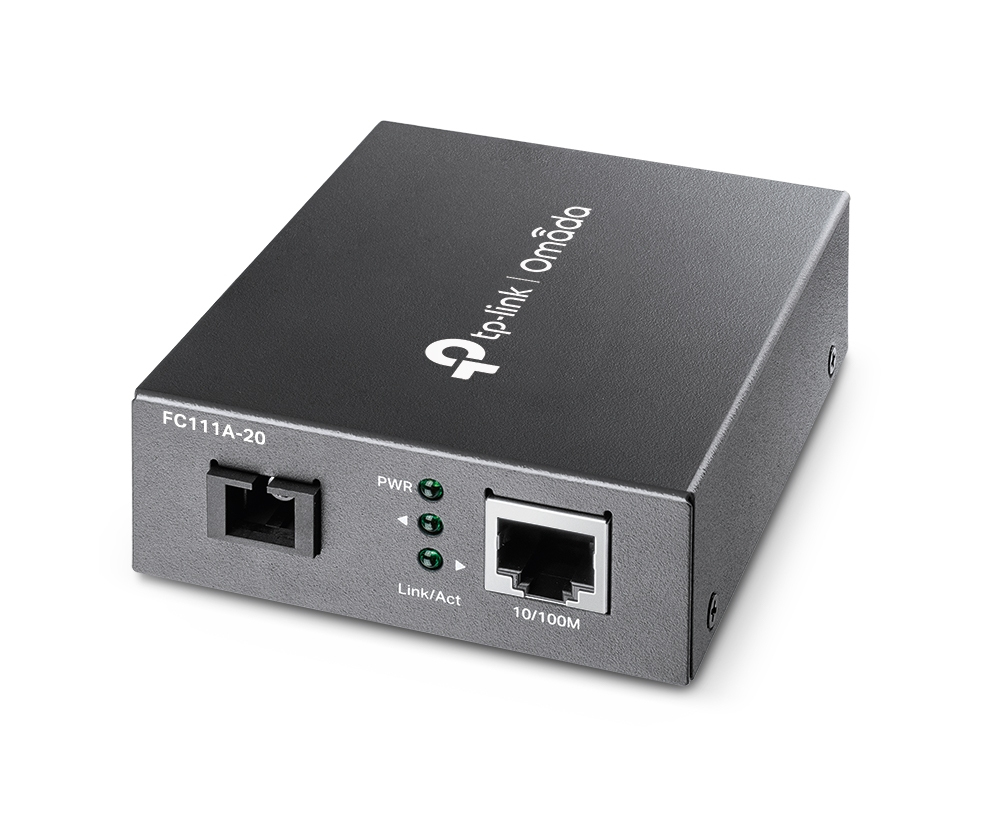

FC111A-20 (TL-FC111A-20) is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter FC111B-20 is one of the products that can cooperate with FC111A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Specs
| Networking |
| Maximum data transfer rate |
100 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology |
100BASE-FX |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Duplex system |
Full, Half |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Weight & dimensions |
| Width |
94.5 mm |
| Depth |
73 mm |
| Height |
27 mm |
| Ports & interfaces |
| Fiber optic connector |
SC |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Power |
| Output voltage |
5 V |
| Output current |
0.6 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Performance |
| Maximum transfer distance |
20000 m |
| Fiber mode structure |
Single-mode |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
FCC, CE |
| Features |
| Internal |
No |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
Features
TP-Link Omada 10/100 Mbps WDM Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A
Product Description
What This Product Does
FC111A-20 (TL-FC111A-20) is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter FC111B-20 is one of the products that can cooperate with FC111A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
