Stock Status: 1x unit in stock

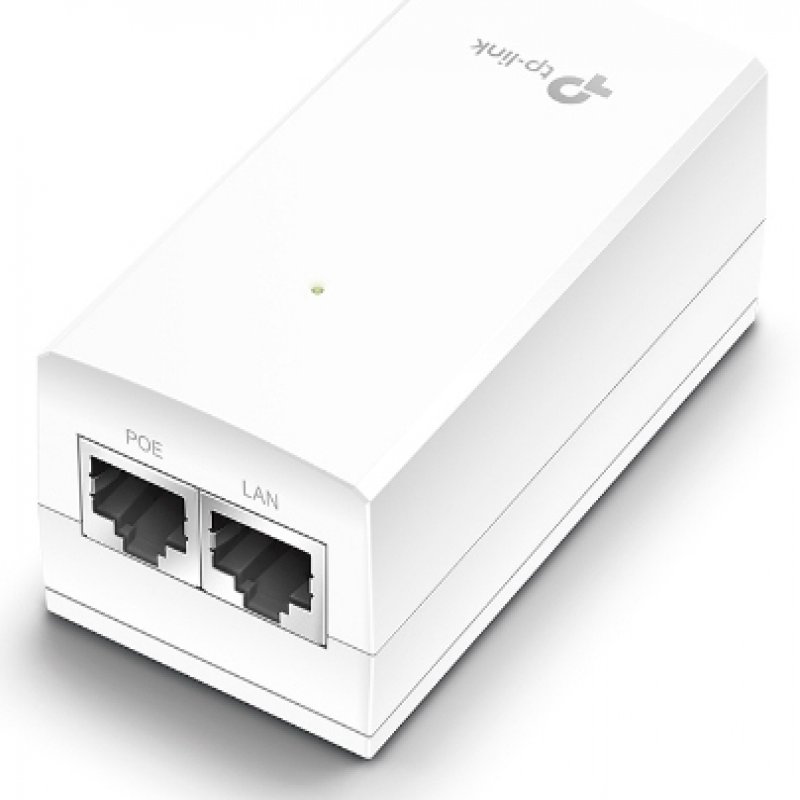

Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.
Specs
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Networking |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000 |
| Power over Ethernet (PoE) |
Yes |
| Auto MDI/MDI-X |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Weight & dimensions |
| Width |
85.8 mm |
| Depth |
43.9 mm |
| Height |
35 mm |
| Dimensions (WxDxH) |
43.9 x 85.8 x 35 mm |
| Power |
| Power over Ethernet (PoE) voltage |
24 V |
| Output power |
12 W |
| Operational conditions |
| Operating temperature (T-T) |
32 - 104 °F |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Power cord included |
Yes |
| Features |
| Product colour |
White |
| Wall mountable |
Yes |
| Plug and Play |
Yes |
| Maximum operating distance |
100 m |
| LED indicators |
Power |
| Auto-negotiation |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85044095 |
| Packaging data |
| Package width |
60 mm |
| Package depth |
180 mm |
| Package height |
60 mm |
| Package weight |
290 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
FCC, CE, RoHS |
Features
TP-Link 24V Passive PoE Adapter. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: White, Maximum operating distance: 100 m, LED indicators: Power. Power over Ethernet (PoE) voltage: 24 V, Output power: 12 W. Compliance certificates: RoHS, Certification: FCC, CE, RoHS. Width: 85.8 mm, Depth: 43.9 mm, Height: 35 mm
Product Description
Passive PoE Adapter
Powers TP-Link products that
support 24V passive PoE
TL-POE2412G
Power Your Devices
Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.
Convenient Wall-Mounting Design
TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.
Compatible Devices
TL-POE2412G is the recommended power supply for compatible devices.
