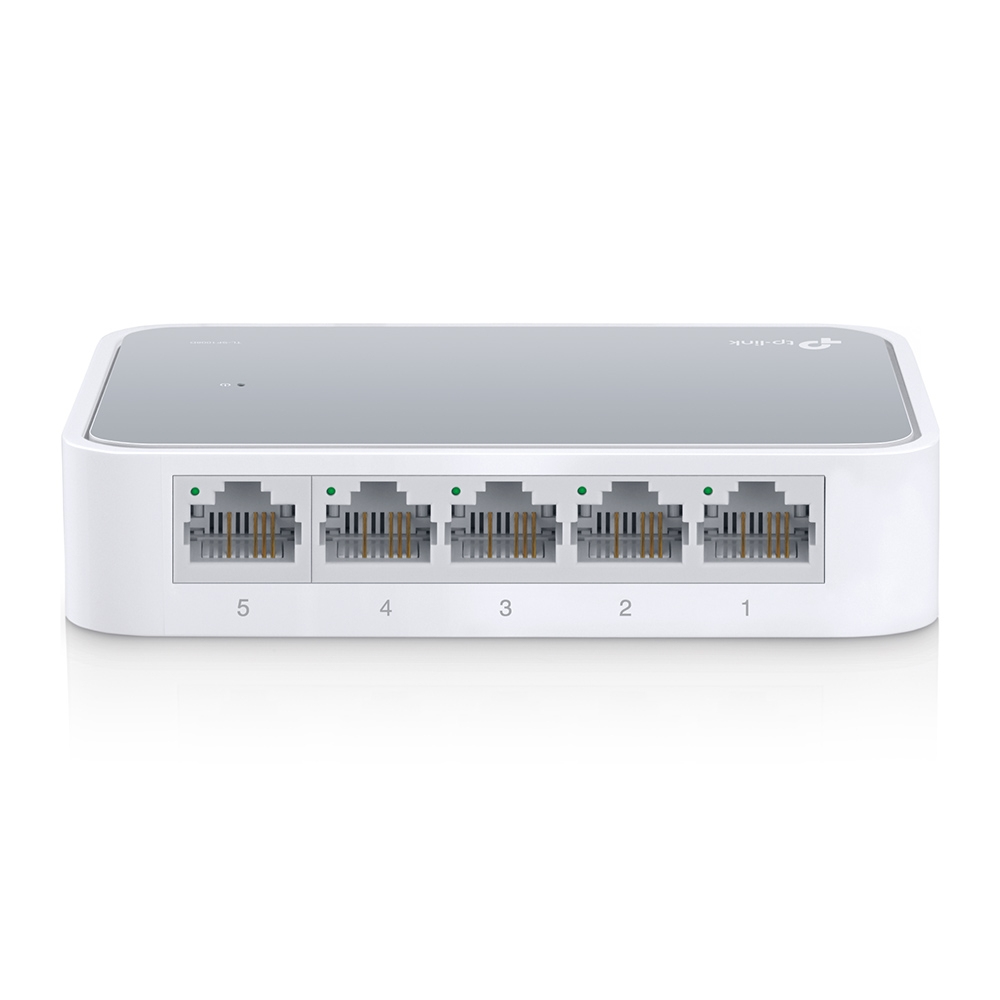

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Fast Ethernet (copper) ports quantity |
5 |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Spanning tree protocol |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto-negotiation |
Yes |
| Power |
| Power source |
DC |
| Power supply included |
No |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
5 V |
| Input current |
0.6 A |
| Power consumption (typical) |
1.87 W |
| Power consumption (max) |
1.87 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
6.38 BTU/h |
| Weight & dimensions |
| Width |
103.5 mm |
| Depth |
70 mm |
| Height |
22 mm |
| Packaging data |
| AC adapter included |
Yes |
| Package type |
Box |
| Package width |
91 mm |
| Package depth |
108 mm |
| Package height |
85 mm |
| Package weight |
190 g |
| Data transmission |
| MAC address table |
1000 entries |
| Switching capacity |
1.6 Gbit/s |
| Store-and-forward |
Yes |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Protocols |
| Supported network protocols |
CSMA/CD, TCP/IP |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
No |
| Product colour |
White |
| LED indicators |
Yes |
| Performance |
| Fanless |
Yes |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Certification |
FCC, RoHs |
| Packaging content |
| Cables included |
AC |
| User guide |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
Features
TP-Link TL-SF1005D. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
Product Description
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
