Stock Status: 1x unit in stock
PoE Switches for Your Ultra Convenience

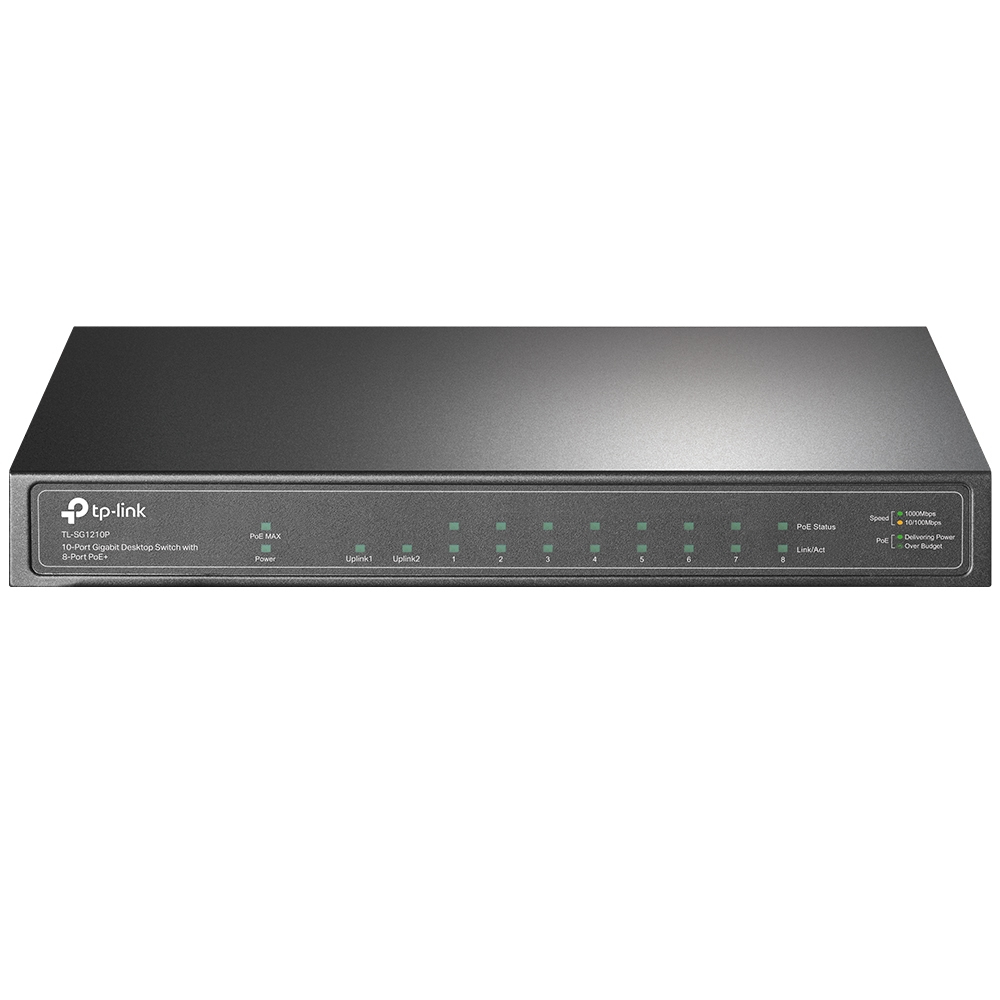

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
9 |
| SFP module slots quantity |
1 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Power |
| Power supply included |
No |
| DC input voltage |
53.5 V |
| Input current |
1.31 A |
| Power consumption (typical) |
7.11 W |
| Power consumption (max) |
78.13 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
266.42 BTU/h |
| Weight & dimensions |
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Security |
| IGMP snooping |
Yes |
| Data transmission |
| MAC address table |
4000 entries |
| Switching capacity |
20 Gbit/s |
| Store-and-forward |
Yes |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Optical fiber |
| Fiber ethernet cabling technology |
1000BASE-X |
| Fiber type |
Single-mode |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
63 W |
| Design |
| Product colour |
Grey |
| Housing material |
Metal |
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Performance |
| Fanless |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Certification |
| Certification |
CE, FCC, RoHS |
| Packaging content |
| Cables included |
AC |
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
Features
TP-Link TL-SG1210P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Product Description
PoE Switches for Your Ultra Convenience
10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
