Stock Status: 1x unit in stock
Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories
- Compatible with ZyXEL WLAN devices to get optimal signal quality
- Matching colors and exterior looks
- Multiple options to meet your current network environments
When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.
To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.
The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.
Specs
| Weight & dimensions |
| Height |
183 mm |
| Diameter |
2.2 cm |
| Weight |
70 g |
| Operational conditions |
| Operating temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Features |
| Antenna type |
Omni-directional antenna |
| Antenna connector type |
N-type |
| Polarization |
Vertical polarization |
| Product colour |
White |
| Purpose |
Outdoor |
| Performance |
| Antenna gain level (max) |
7 dBi |
| Frequency band |
2.4/5 GHz |
| Antenna gain (2.4 GHz) |
4.5 dBi |
| Antenna gain (5 GHz) |
7 dBi |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Vertical beam width |
30° |
| Horizontal beam width (2.4 GHz) |
360° |
| Vertical beam width (2.4 GHz) |
30° |
| Horizontal beam width (5 GHz) |
360° |
| Vertical beam width (5 GHz) |
15° |
| Logistics data |
| Harmonized System (HS) code |
85177100 |
Features

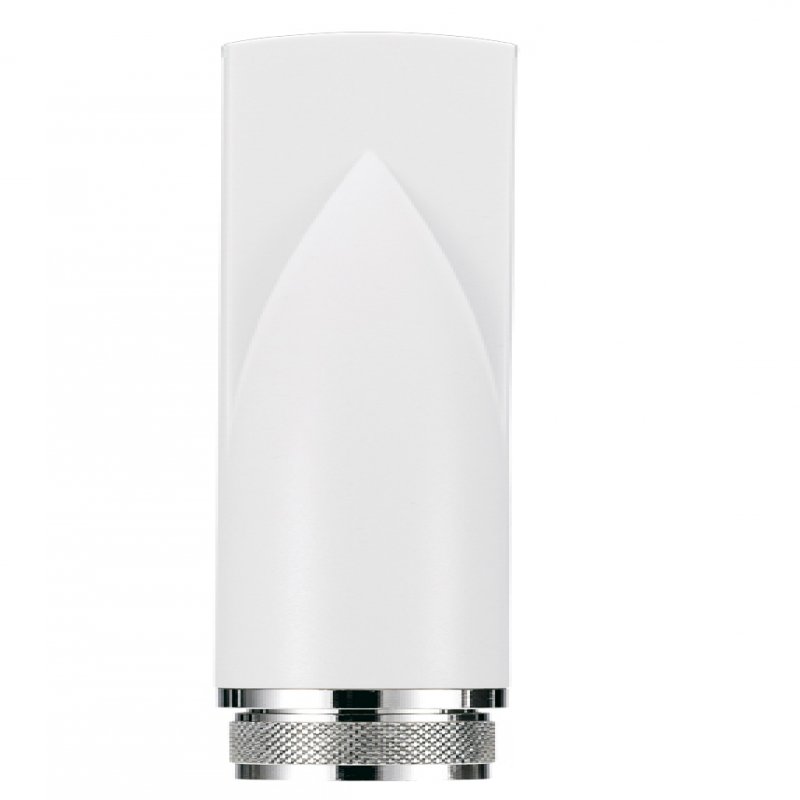

Zyxel ANT2105-ZZ0201F. Antenna gain level (max): 7 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 4.5 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Height: 183 mm, Diameter: 2.2 cm, Weight: 70 g
Product Description
Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories
- Compatible with ZyXEL WLAN devices to get optimal signal quality
- Matching colors and exterior looks
- Multiple options to meet your current network environments
When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.
To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.
The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.
