Stock Status: 1x unit in stock
Easy web management and set-up wizard
This switch comes with a user-friendly web-based set-up wizard that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.
IGMP Snooping for optimized traffic delivery
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.
VLAN segregation for enhanced network security
VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.
Enhanced port-based QoS for better traffic control
QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.
Link Aggregation increase throughput beyond what a single connection could sustain
GS1200-5/8 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.
Advanced energy-savings at work
This switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic.
Fanless, noiseless design
Extend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail.
More comprehensive smart features included
Featuring Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Networking |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
No |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| VLAN support |
Yes |
| Power |
| DC input voltage |
5 V |
| Input current |
1 A |
| Power consumption (max) |
3.31 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
155 mm |
| Depth |
85 mm |
| Height |
26 mm |
| Weight |
325 g |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Packaging data |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Package type |
Box |
| Rubber feet |
Yes |
| Package width |
161 mm |
| Package depth |
90 mm |
| Package height |
95 mm |
| Package weight |
497 g |
| Data transmission |
| MAC address table |
4000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Packet buffer memory |
0.15 MB |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Protocols |
| Management protocols |
IGMPv1,IGMPv2,IGMPv3 |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Silver |
| LED indicators |
Power |
| Safety |
CE-LVD, BSMI |
| Electromagnetic compatibility |
CE, FCC, BSMI, Class B |
| Performance |
| Firmware upgradeable |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Multicast features |
| Multicast support |
Yes |
Features

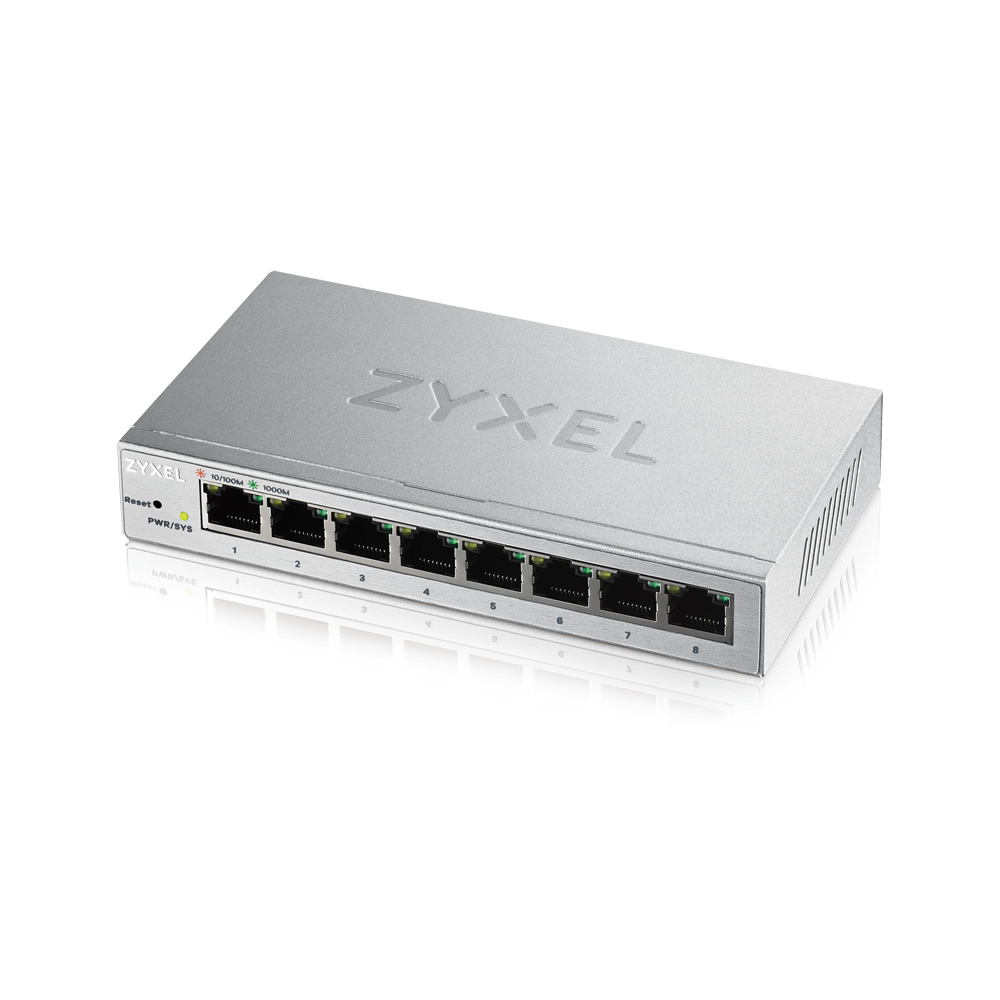

Zyxel GS1200-8. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 5 V. Power connector: DC-in jack
Product Description
Easy web management and set-up wizard
This switch comes with a user-friendly web-based set-up wizard that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.
IGMP Snooping for optimized traffic delivery
Based on the IGMP (Internet Group Management Protocol) query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.
VLAN segregation for enhanced network security
VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.
Enhanced port-based QoS for better traffic control
QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.
Link Aggregation increase throughput beyond what a single connection could sustain
GS1200-5/8 combines 2 physical ports together to make a single high-bandwidth data path, for faster file transfers and to enhance connection reliability.
Advanced energy-savings at work
This switch’s built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during times of low traffic.
Fanless, noiseless design
Extend your network control and visibility without disrupting your quiet business environment. This business switch features a fanless design that ensures noiseless operation and greater reliability over time with fewer parts to fail.
More comprehensive smart features included
Featuring Gigabit performance that’s 10 times faster than Fast Ethernet. Deliver up to 2,000 Mbps of dedicated, non-blocking bandwidth per port and more advanced features like port mirroring, Jumbo Frame, broadcast storm control, loop detection/prevention. It’s a great choice for SMBs who want to enjoy high-speed business network applications!
